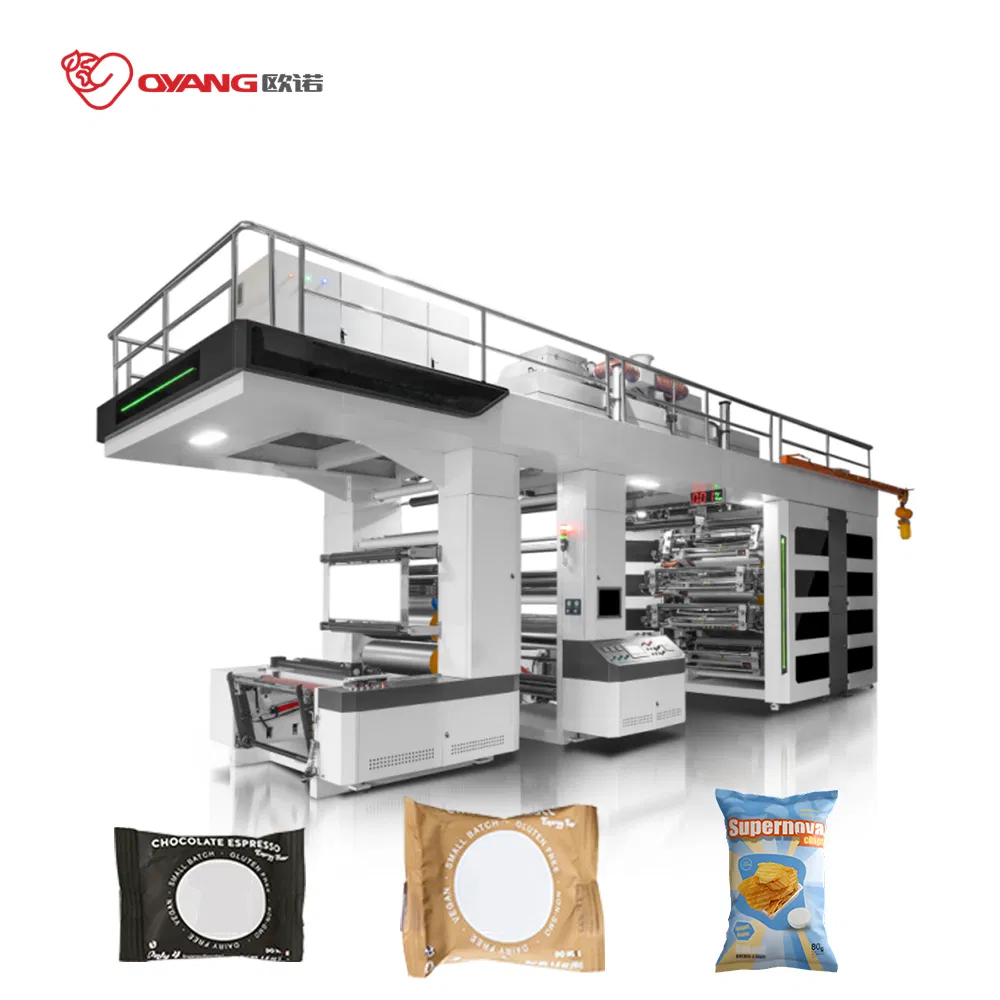

1800mm Ci Flexography Flexographic Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexo Printing Machine

Customization: Available
After-sales Service: Overseas Engineering Team Technical Support
Warranty: 1 Year

Product Description

Overview

Basic Info.

Model NO.Oyang-16 YTB Series
Printing PageSingle Faced
Printing Color2/4/6 Colors
Anilox RollerCeramic Anilox Roller
DryerUV & IR
TypeInk Jet
Embossing StructureRotary Letterpress
StructureUnit Type
ApplicationFlexible Packaging Printing
Automatic GradeAutomatic
Printing Speed100 M/Min
Printing WidthCustomize
Printing LengthCustomize
Accuracy0.10mm
NameOyang-16 Ytb Series
Transport PackagePacked by Pearl Cotton and Plastic Film
SpecificationStandard Specifications or Customized
OriginChina Mainland
HS Code8443140000
Production Capacity40 sets/Month

Packaging & Delivery

Package Size900.00cm * 240.00cm * 270.00cm
Package Gross Weight5500.000kg

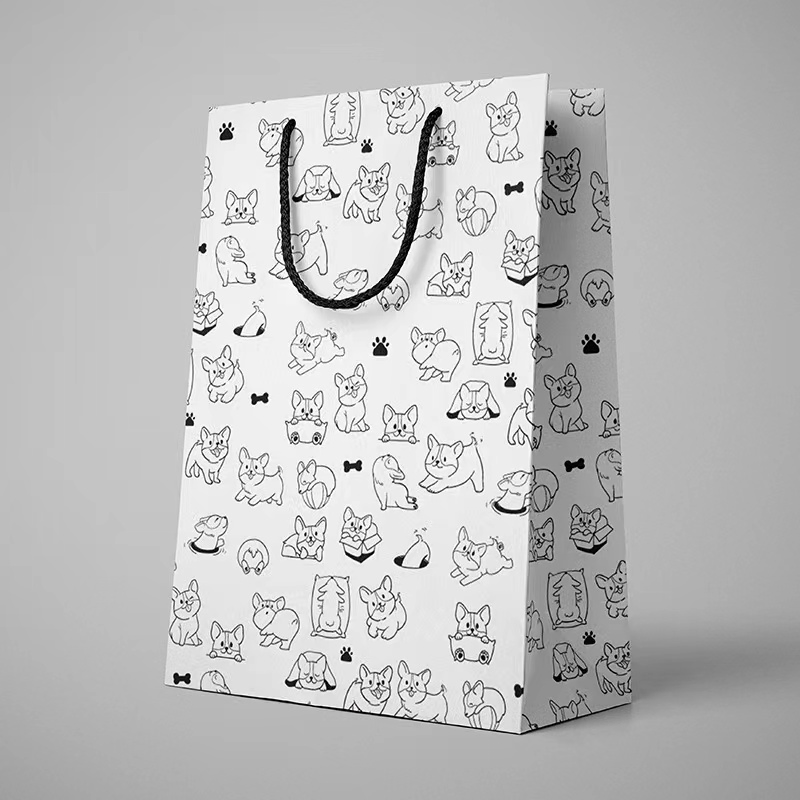

Printing Sample

Product Parameters

Parameter Item Specifications
Number of printing colors 2/4/8 colors
Maximum paper width 1320 mm
Maximum printing width 1300 mm
Printing length 300mm - 900mm
Registration accuracy ±0.10mm
Maximum machine speed 80 m/min
Electricity demand 380V 50Hz 3PH
Maximum power 180kw

Product Description

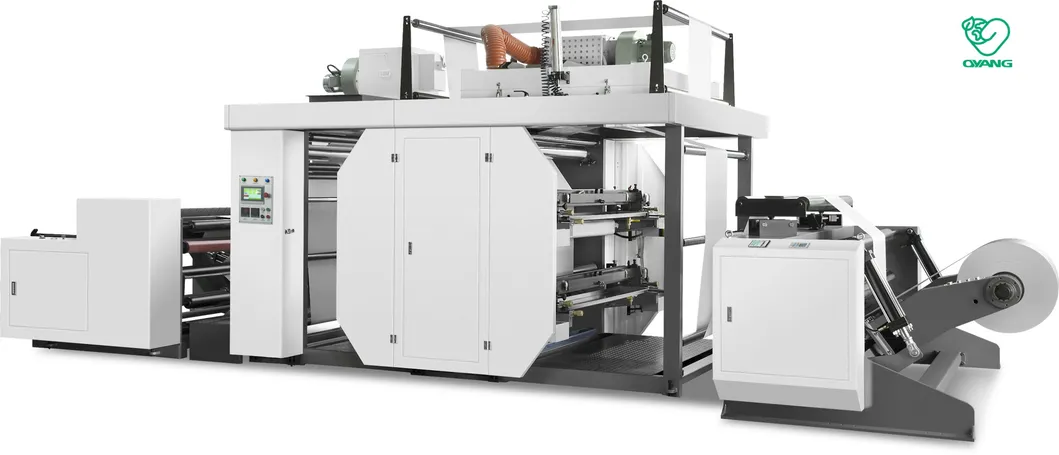

Flexo Printing Machine Banner

Feeding material part:

  • Single unwind system, pneumatic loader for unwind system.
  • Automatic stop machine when material breaks. When the machine stops, tension is maintained to prevent material loosening or line deflection.
  • Air shaft configuration.
  • EPC (edge position control): Features manual, automatic, and central return functions to adjust rewind movements left and right.
  • Automatic tension control system equipped with a magnetic brake (20KG).
  • Roller core diameter: 76mm.
  • Discharge maximum diameter: 1000mm.

Printing sections:

  • Plate roller circumference: 300-1000mm, standard configuration is less than 400mm.
  • Print material compatibility: Resin plate or rubber plate.
  • Transmission type between printing roller and anilox roller: Helical gears.
  • Printing chromatography: 360-degree rotation.
  • Adjustment method: Manual adjustment. (Automatic printing starts after manual setup. When restarting the machine, there is no need to re-register colors; printing pressure and registration remain consistent.)
  • Printing roller lifting system: Automatic hydraulic cylinder control for rolling up and down.

Drying system:

  • Equipped with a blower and heater configured with a central temperature control system.
  • Dry apparatus integrated between each color, plus an additional drying apparatus after printing is complete.

Rewinding Part:

  • Single rewind system with a pneumatic loader.
  • Film central rewind system.
  • Air shaft configuration.
  • Roller core diameter: 76mm.
  • Discharge maximum diameter: 1000mm.

Company Profile

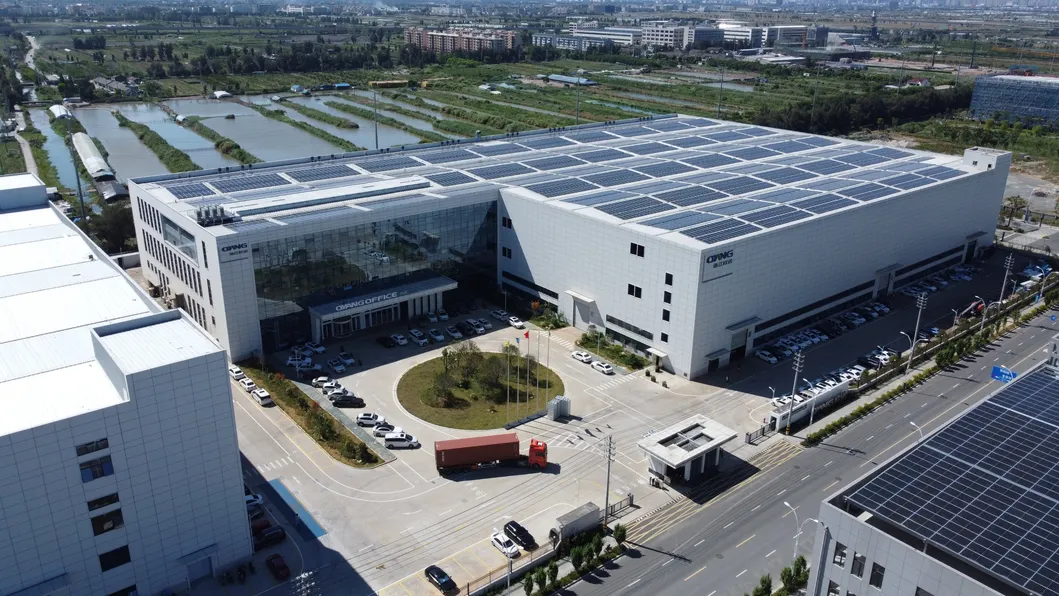

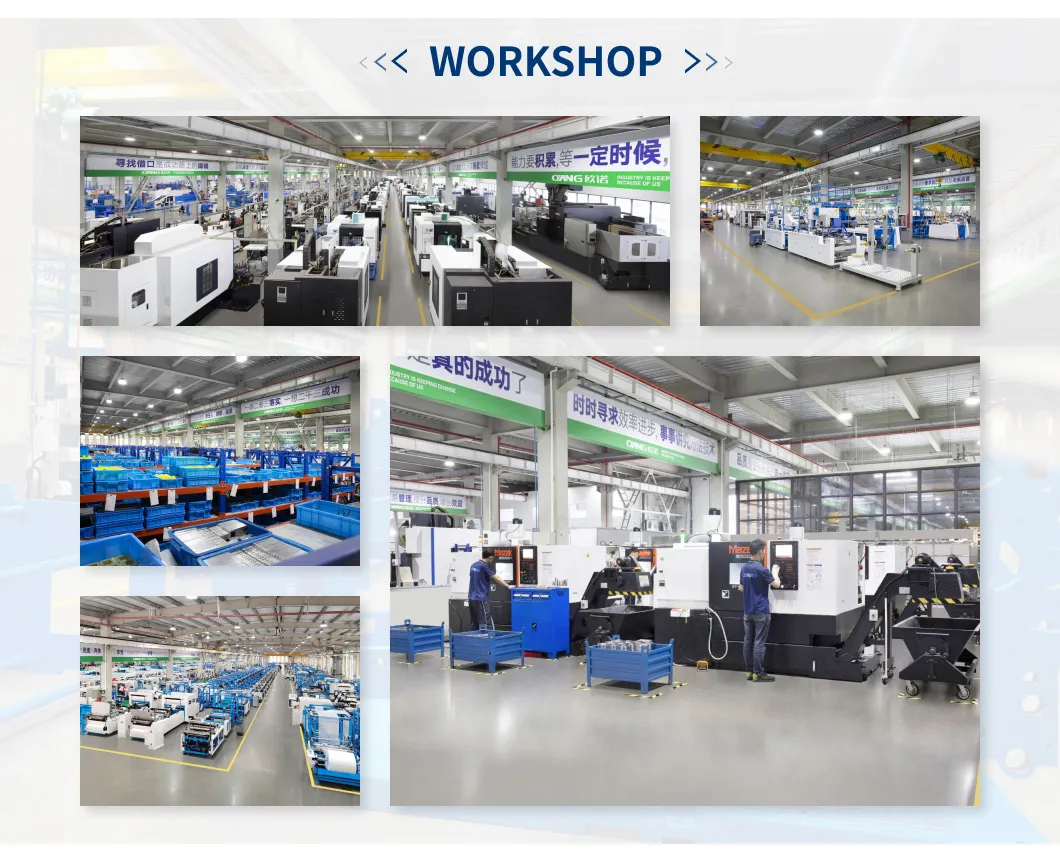

Factory Overview

Founded in 2006, covering an area of 130,000 square meters with more than 400 workers, our group is a comprehensive company representing the largest paper bag machine & nonwoven bag making machine manufacturer in China. We offer complete solutions in eco-friendly bag making projects, including paper bag making setups, nonwoven bag making options, and nonwoven fabric production lines. We have exported equipment worldwide. Every year, we introduce at least one new machine design. Creating value for customers first is our core principle. We look forward to cooperating with you!

FAQ

Q1. How long will your engineer take to reach our factory?

Our after-sales specialist will contact you to confirm the schedule according to your request.

Q2. How many days will it take to finish installation?

We will complete the installation and training within 1 to 2 weeks.

Q3. How long is the machine's warranty period?

All of our machines carry a one-year guarantee, starting from the completion of the installation.

Q4. How are broken parts handled within the warranty period?

We will ship replacement parts to you free of charge during the warranty term.

Q5. Do your engineers speak English?

Our engineers understand basic English. All engineers have over five years of machine installation experience.

Q6. How do we solve machine issues after the engineer leaves?

Problems are rare after setup is complete. Should any issues arise, you can contact our after-sales department, which is staffed by 30 engineers prepared to provide troubleshooting videos based on your description.
