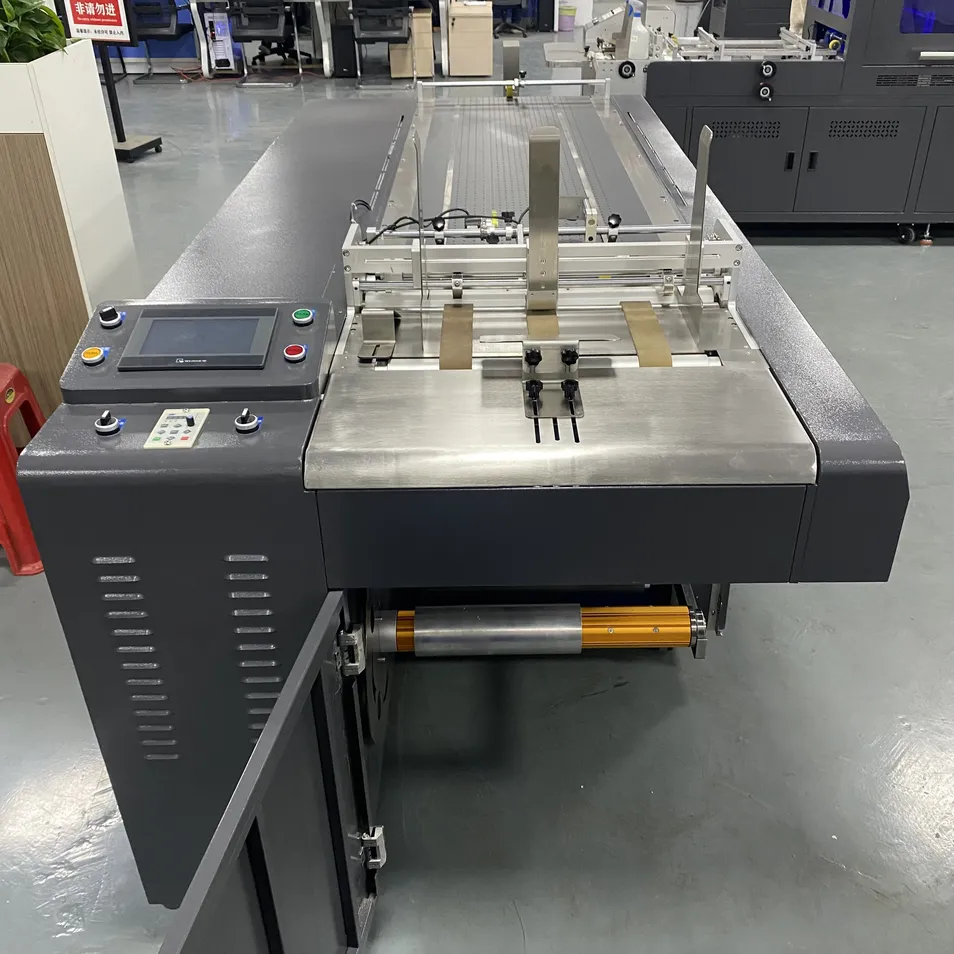

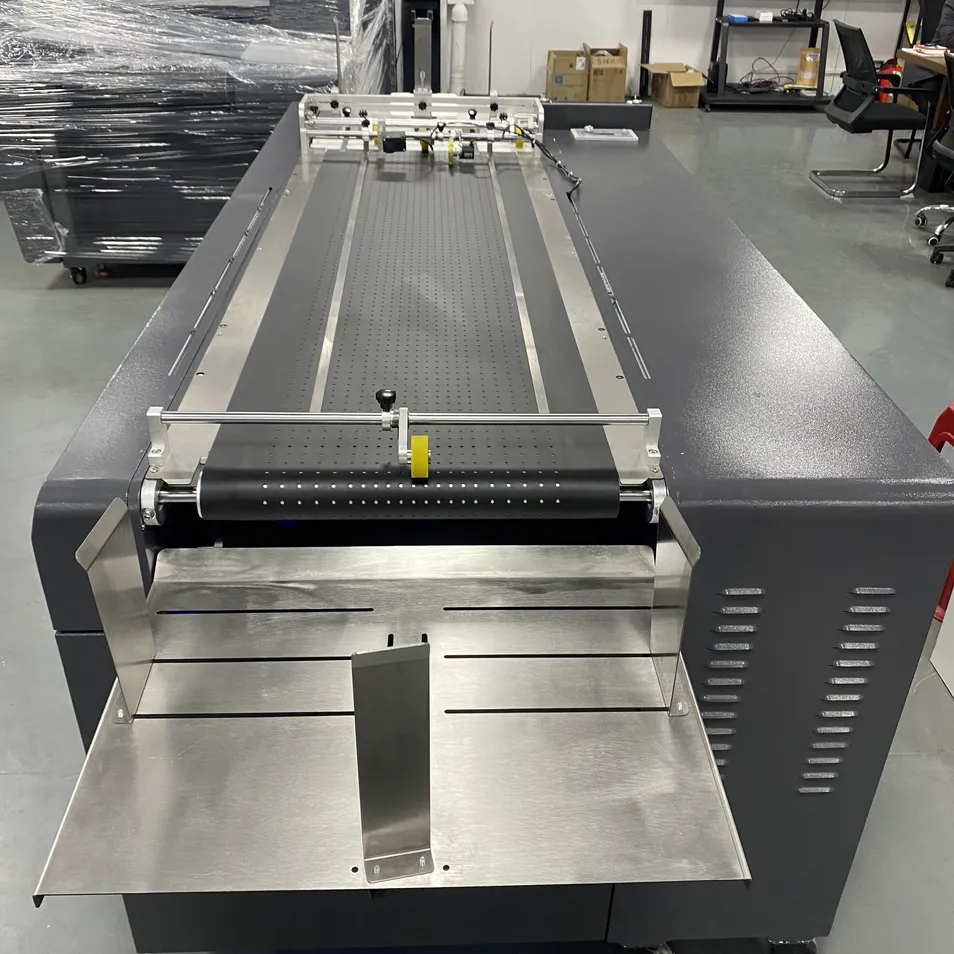

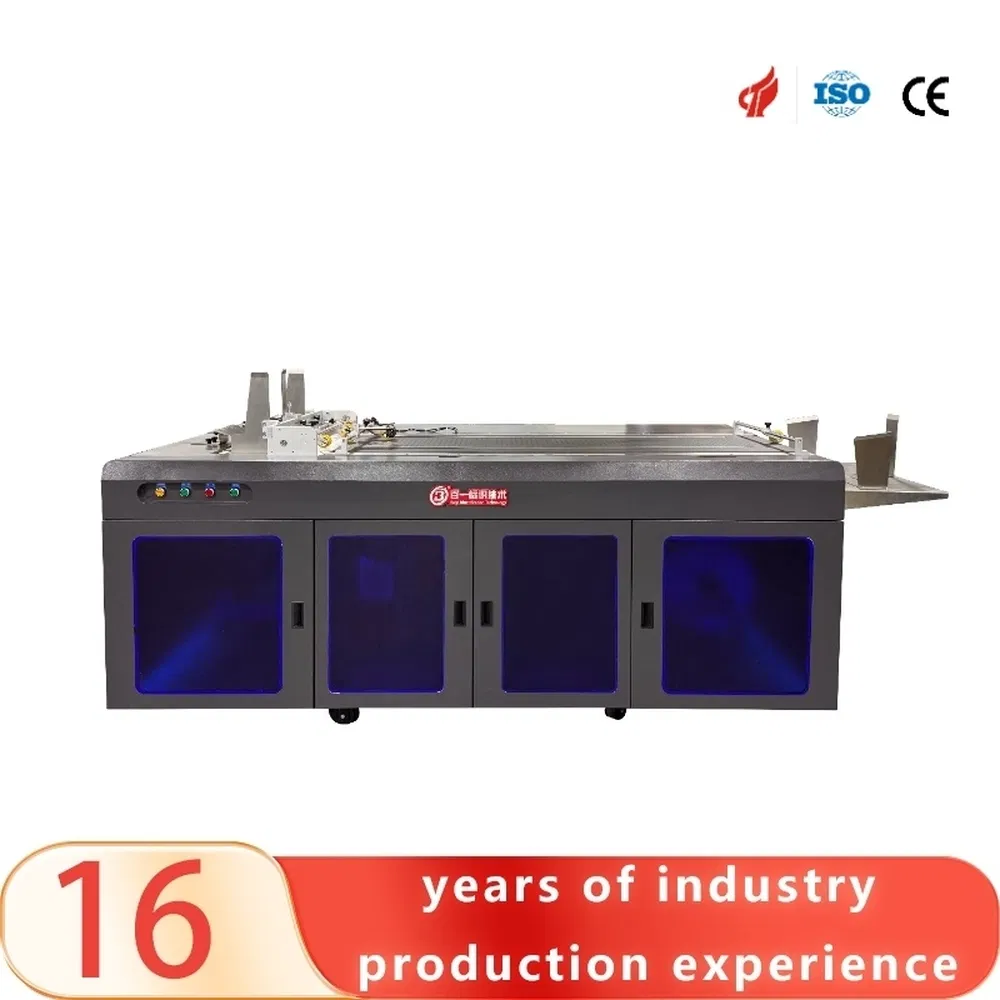

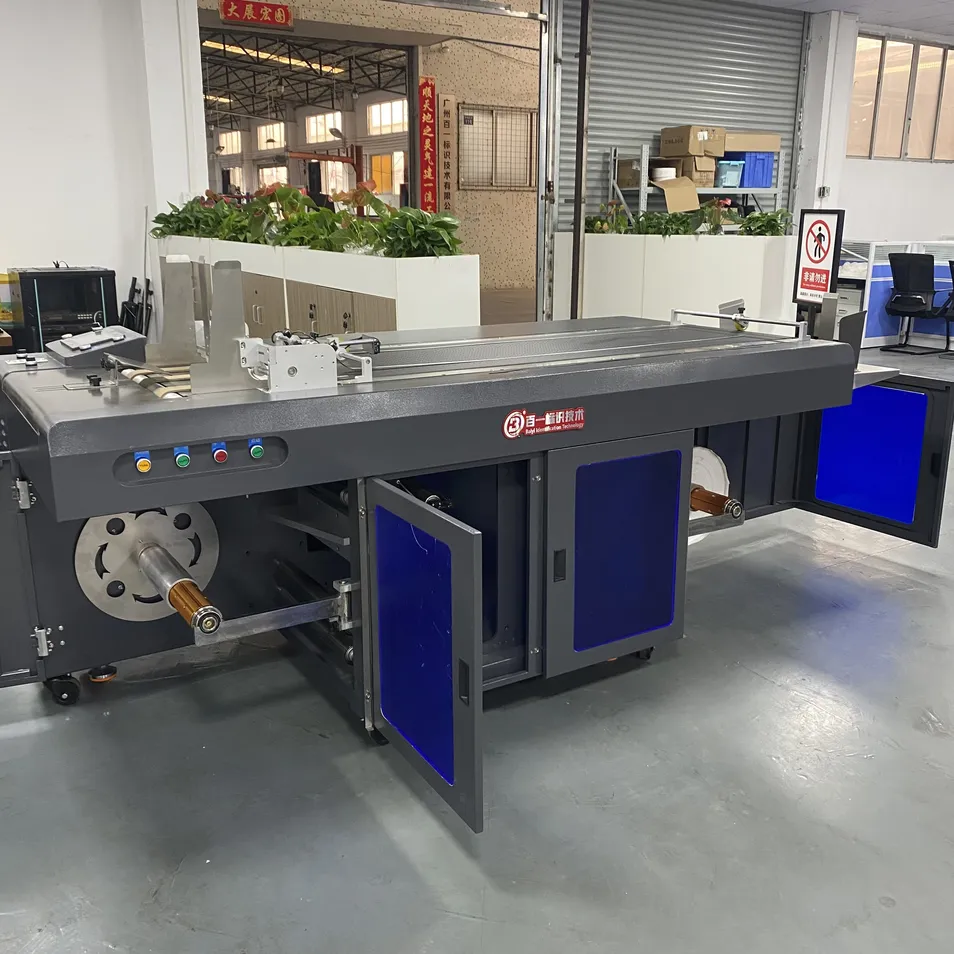

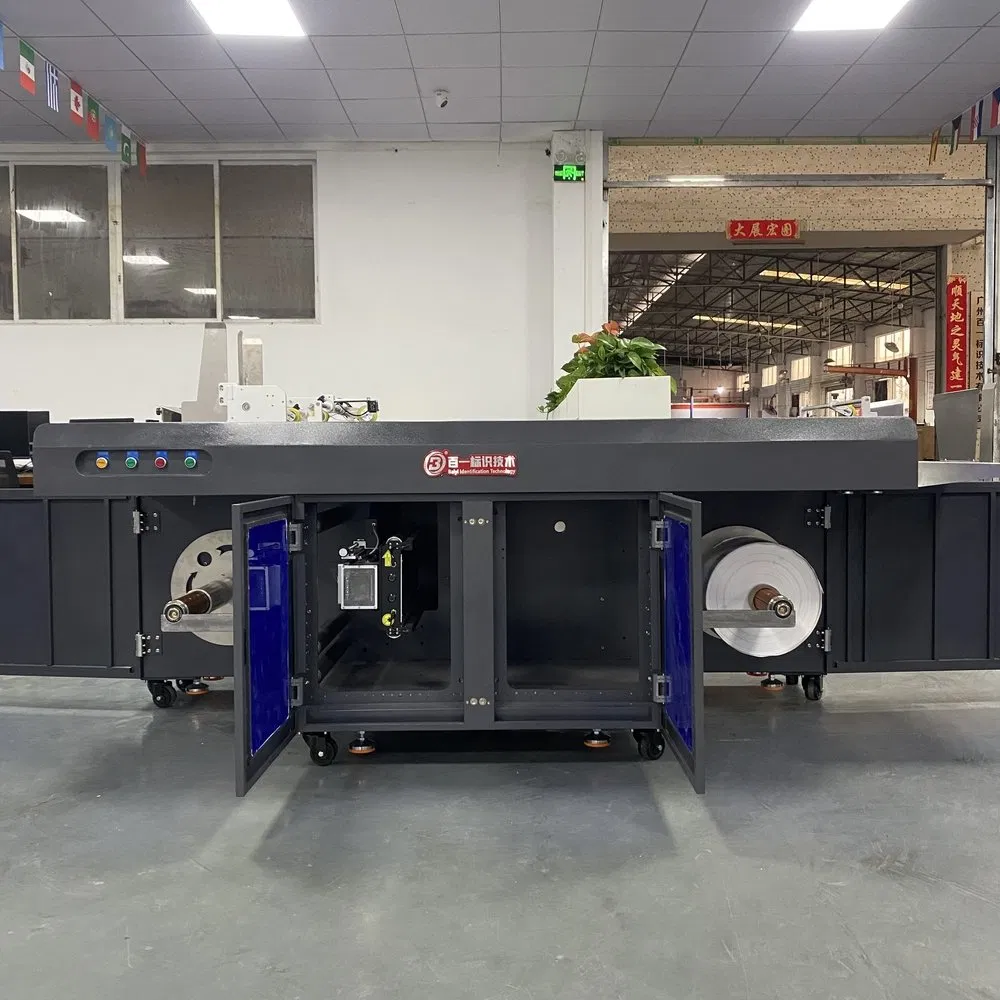

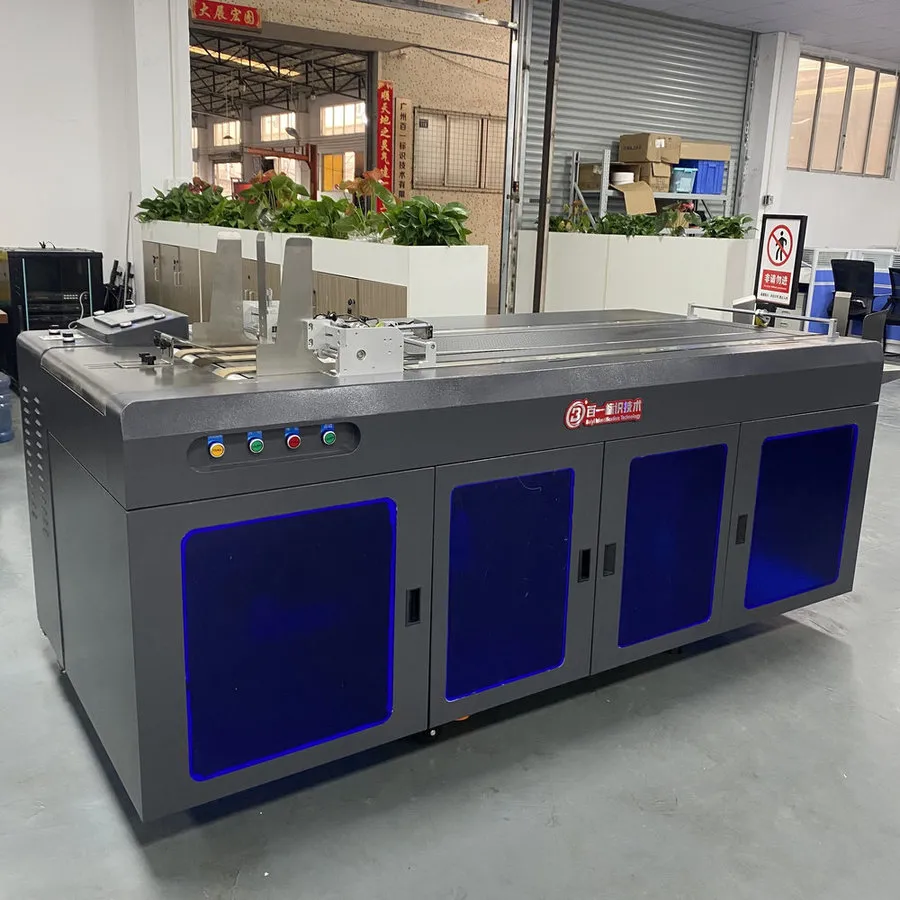

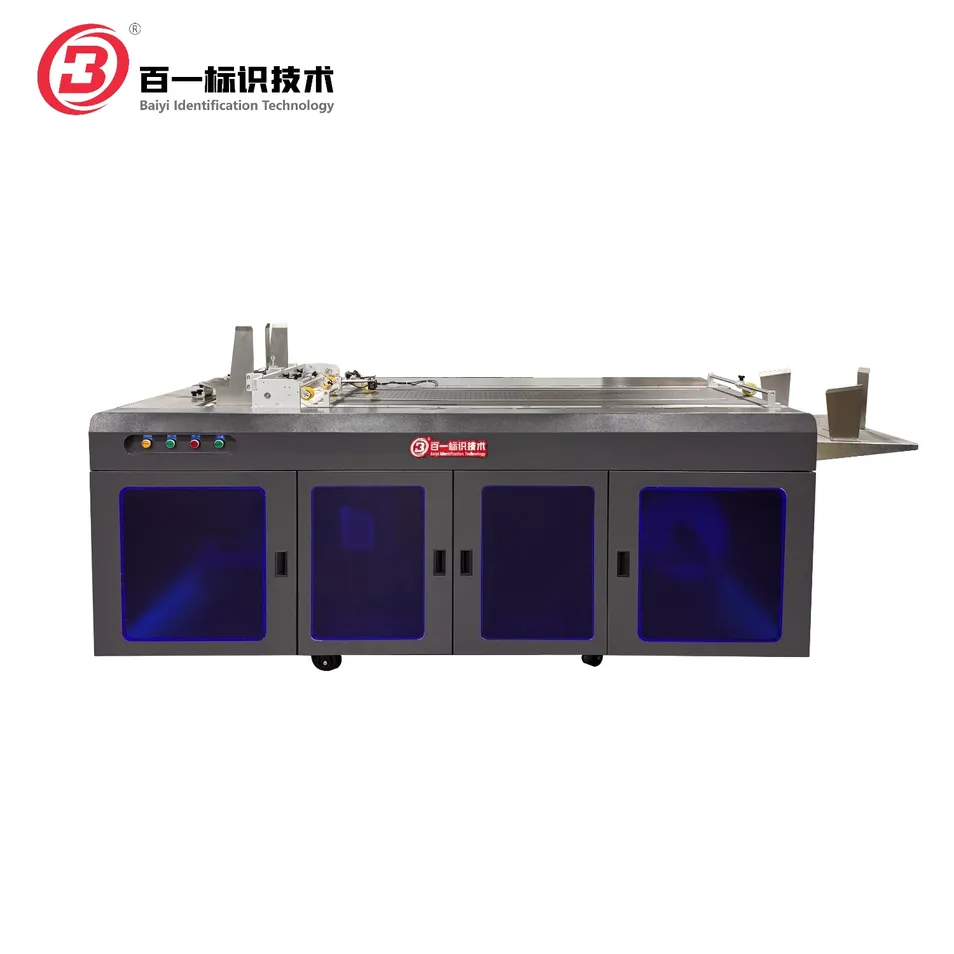

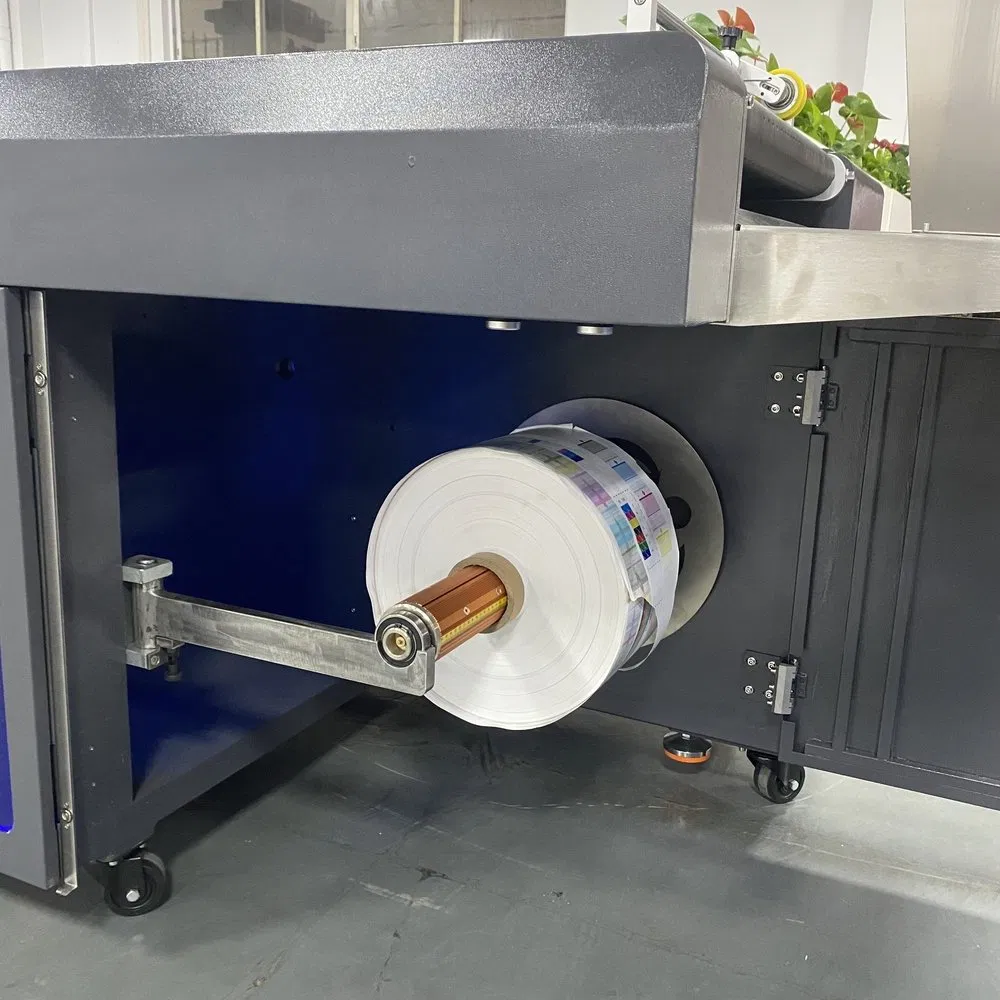

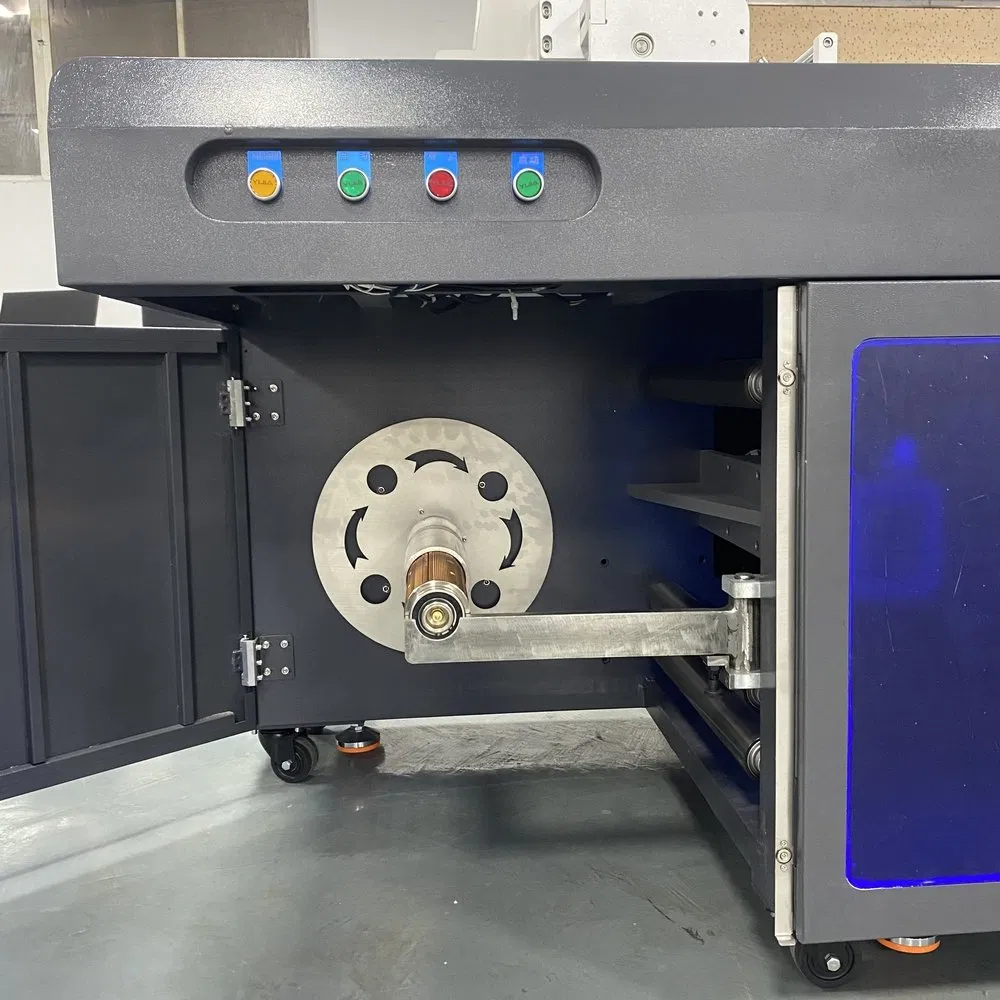

This advanced intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.
Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.
The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.
| Technical Parameters Specification | |||
|---|---|---|---|
| Voltage | 220Vac, 50Hz | Releasing Tension Control | Linear Tension Control |
| Weight | About 500Kg | Collection Tension Control | Linear Tension Control |
| Power | About 4.5Kw | Dimension | L*W*H = 2600*1000*1200 mm |
| Core Diameter | 3 Inch (76mm) | Conveyor Speed | 5-150M/Min (Adjustable Continuously) |
| Efficiency | About 500 Pcs/Min (Based on 100mm product reference size. Actual speed corresponds to printing speed and frequency.) | ||
| Available Product Size | Material Width: 30-480mm, Max Material Diameter: 500mm, Max Weight for Material: 50Kg | ||

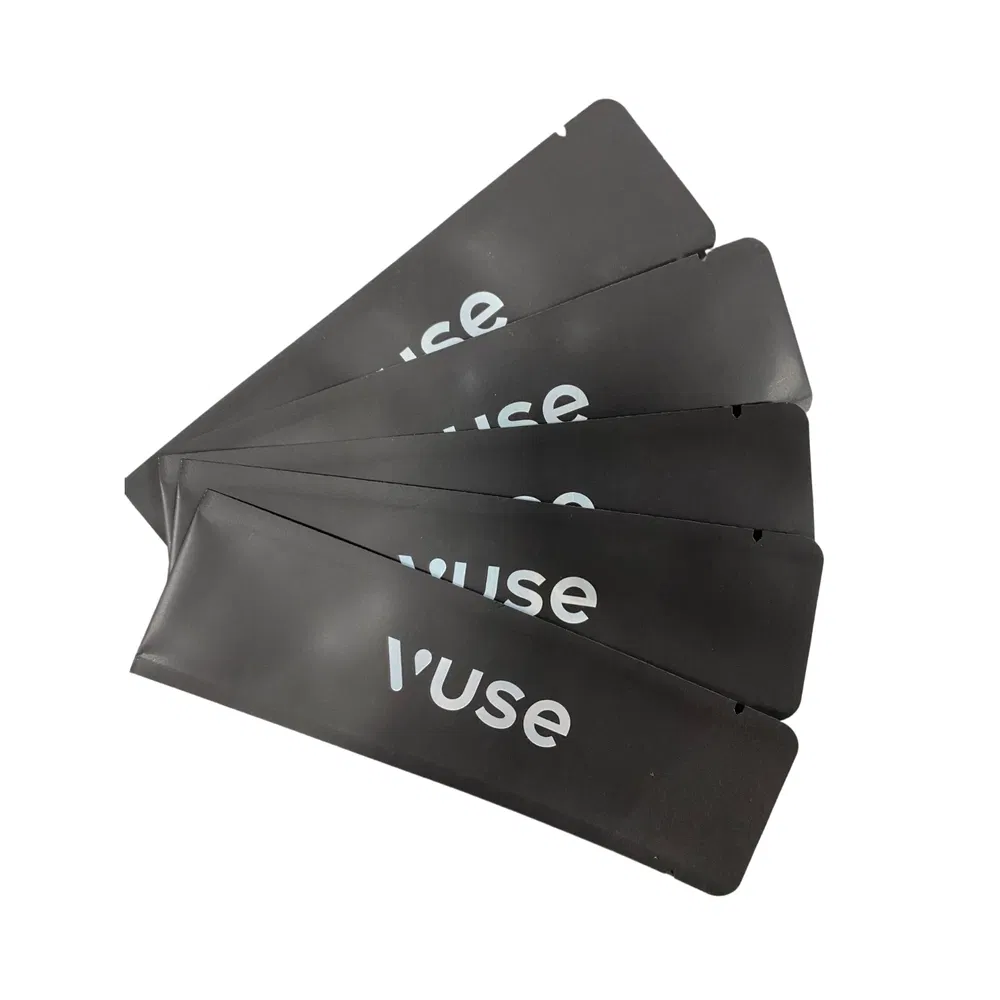

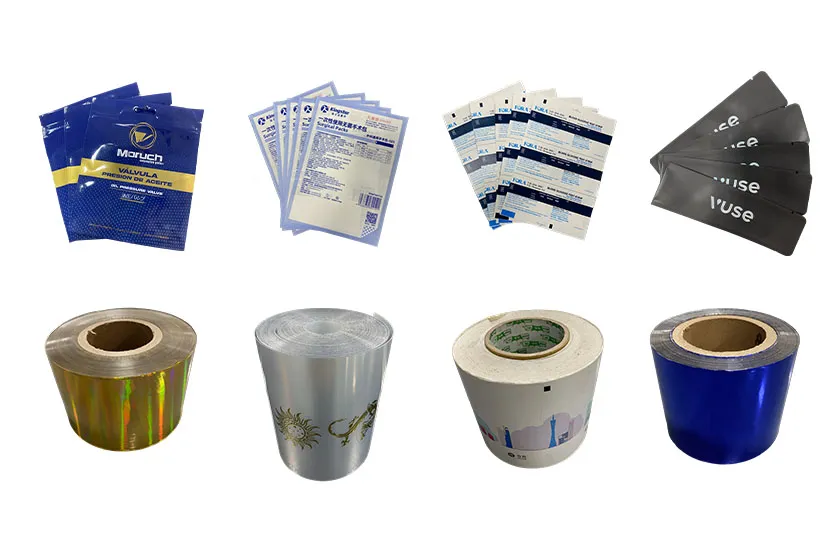

| Available Product Materials | BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film, etc. (Roll & Sheet Material formats) | ||
Customizable working parameters adaptable to different films & label structures.
Lifting speeds, prevention tools, trigger sensing, and counting functions.
Speed capabilities and robust stability for high-volume production.
HMI system displaying diagnostic information and alarm indicators.
Prices vary depending on the specific machine configuration matching your production requirements.
Yes, our minimum order quantity for all international orders is 1 set.
Yes, we can prepare and process relevant certifications and applications based on your market requirements.
It depends on your selection and requirements, generally ranging from 2 working days up to 30 working days.
We accept TT (Telegraphic Transfer) payments: 50% deposit after the order confirmation, with the remaining balance to be settled prior to shipment.
We offer a standard one-year warranty after delivery. Please note that wearable parts are excluded from warranty coverage.
