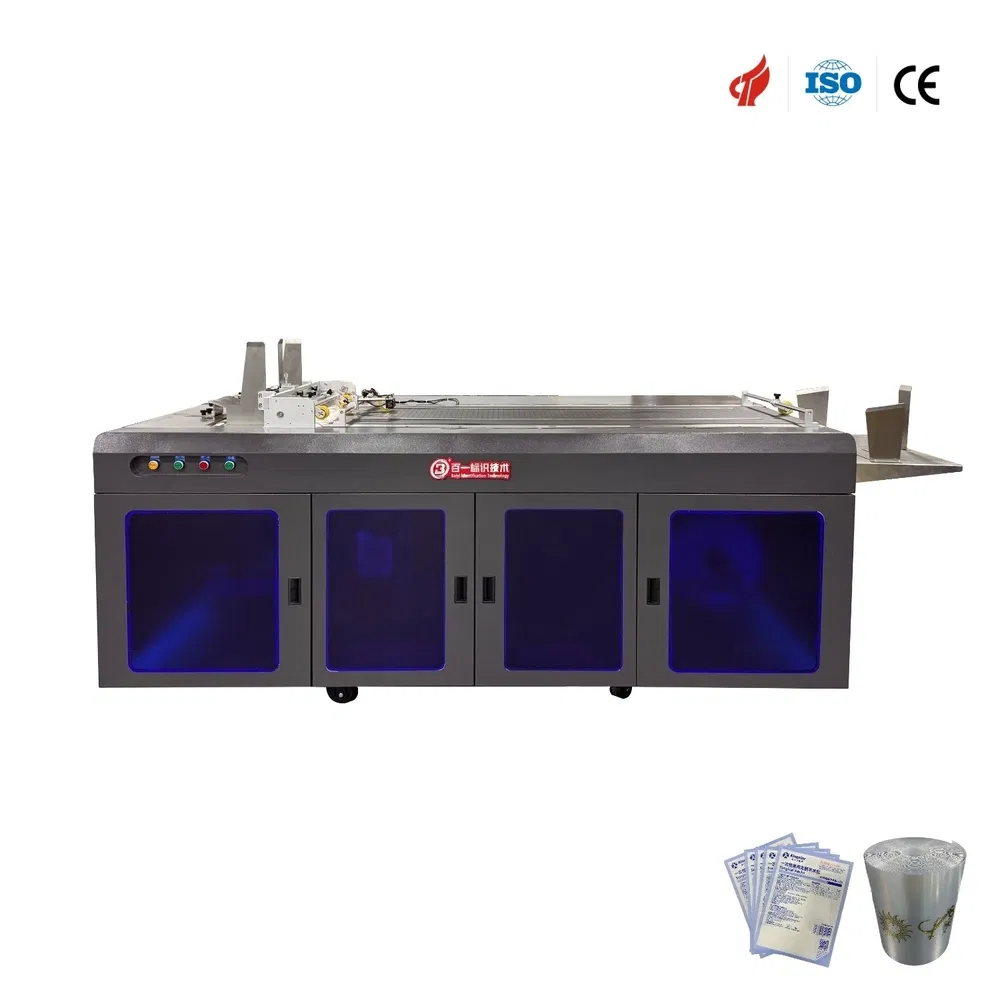

High Precision Friction Rewinding Machine for Industrial Use

Customization:	Available
After-sales Service:	Overseas Engineering Team Technical Support
Warranty:	One Year

Basic Info.

Model NO.	BY-FR500
Usage	Paper Printer, Label Printer, Card Printer
Automatic Grade	Automatic
System Supported	Windowsxp32
Product Name	Friction Feeding and Rewinding Machine
Keywords	Rewinding Machine
Material	Stainless Steel/Painted Carbon Steel
Feature	High Efficiency , Multi-Function, Stable
OEM Custom	Yes
ODM Custom	Yes
Package	in Standard Export Package
Transport Package	Standard Packaging or Customized
Specification	Standard Specifications or Customized
Origin	Guangdong, China
Production Capacity	100sets/Year

Product Description

High Precision Friction Rewinding Machine for Industrial Use

FEEDING AND REWINDING MACHINE

This advanced intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.

Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.

The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.

Applications

Flexible Packaging Industry: Roll film feeding, printing, and rewinding for food packaging, pharmaceutical packaging, and consumer goods wrapping materials.
Label Manufacturing: Production of adhesive labels, product tags, barcode labels, and identification stickers with integrated printing and finishing.
Film Processing & Converting: Handling plastic films, BOPP films, PET films, aluminum foil, and specialty materials requiring unwinding and rewinding operations.
Variable Data Printing: Batch coding, expiration dates, serial numbers, and personalized information on roll materials using integrated printing systems.
Pharmaceutical & Food Industries: Compliance coding and marking on packaging materials with precise tension control for delicate substrates.
Industrial Materials Processing: Roll-to-roll processing for technical textiles, protective films, release liners, and specialty converting applications.

Product Parameters

Technical Parameters
Voltage	220Vac, 50Hz	Releasing Tension Control	Linear Tension Control
Efficiency	About 500Pcs/Min (Reference product: 100mm length. Real speed depends on printing speed and frequency.)
Weight	About 500Kg	Collection Tension Control	Linear Tension Control
Conveyor Speed	5-150M/Min (Continuously adjustable)	Power	About 4.5Kw

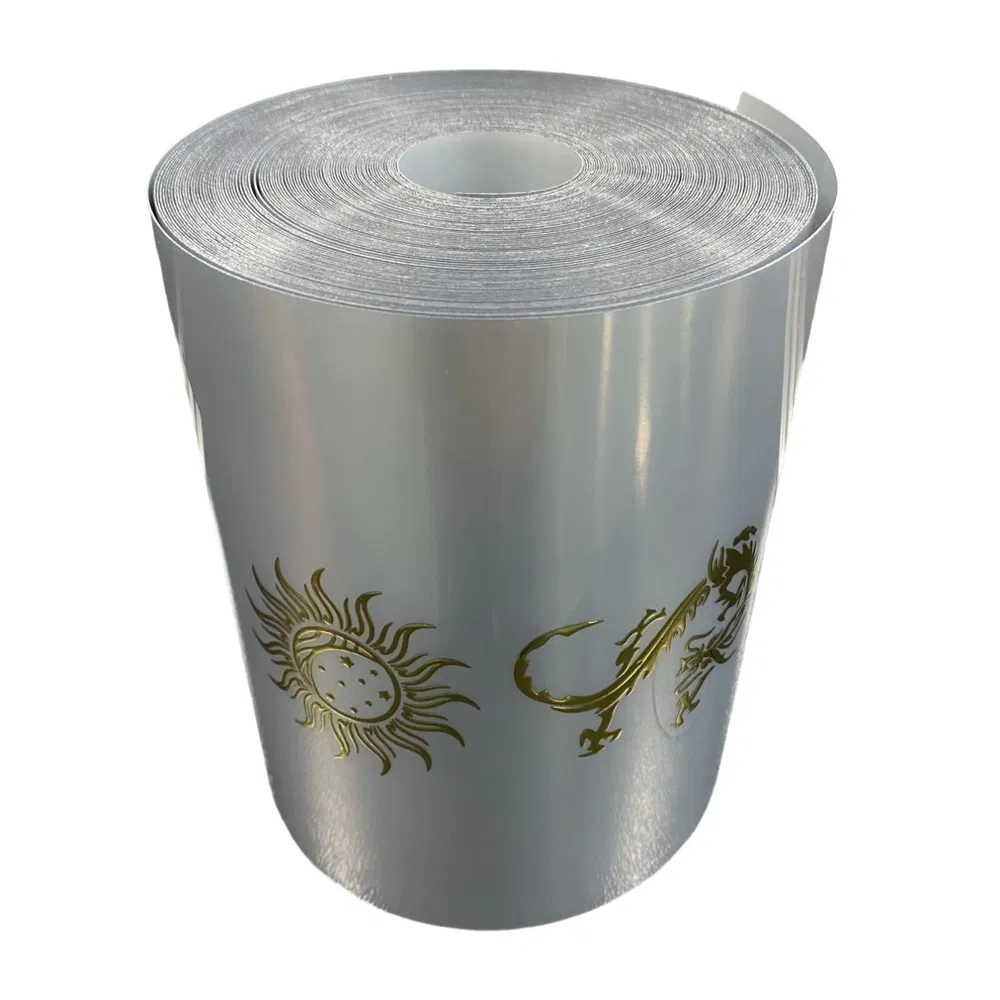

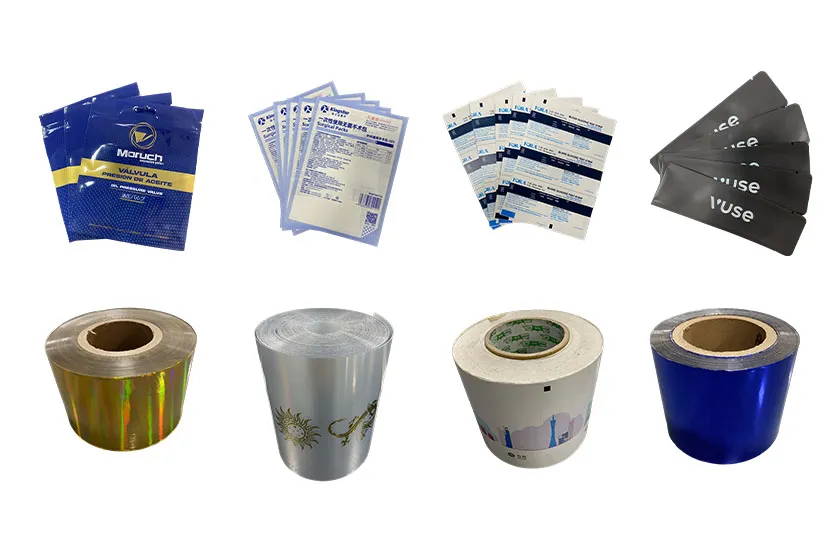

Dimension	LWH = 260010001200 mm	Available Product	Bopp, Cpp, Pet, Pe, Paper, Composite Film, Aluminized Film etc. Roll and sheet material.
Core Diameter	3 Inch (76mm)	Available Product Size	Material Width: 30-480mm, Max Material Diameter: 500mm, Max Weight: 50kg

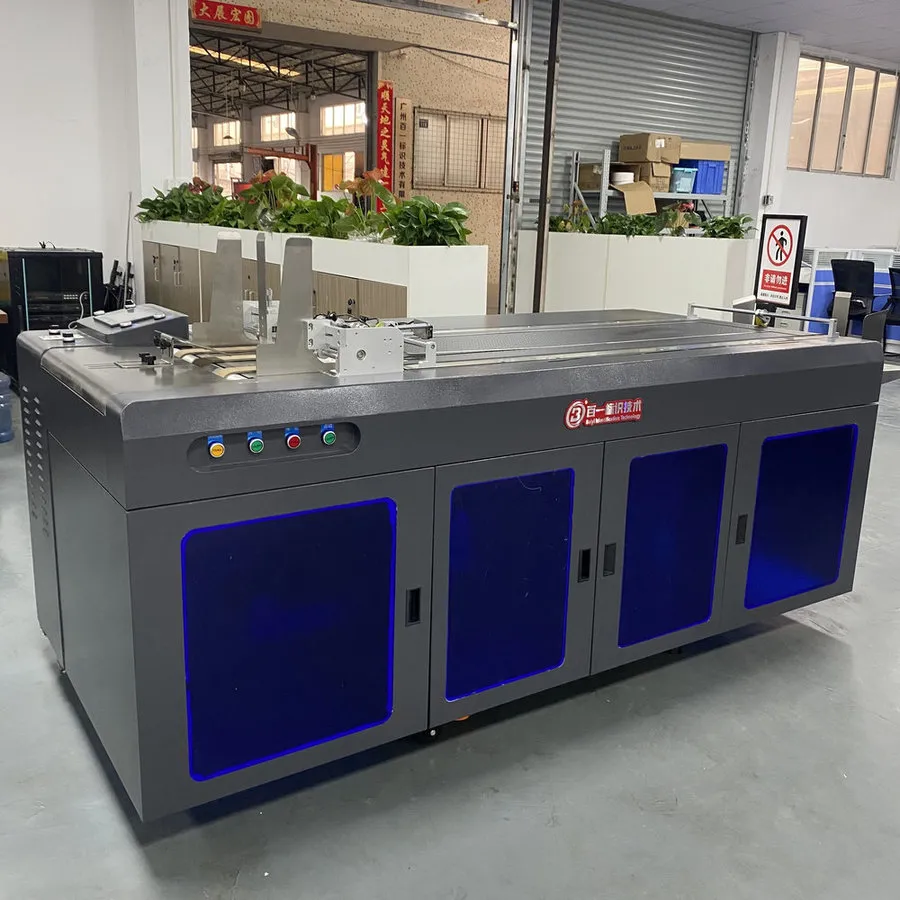

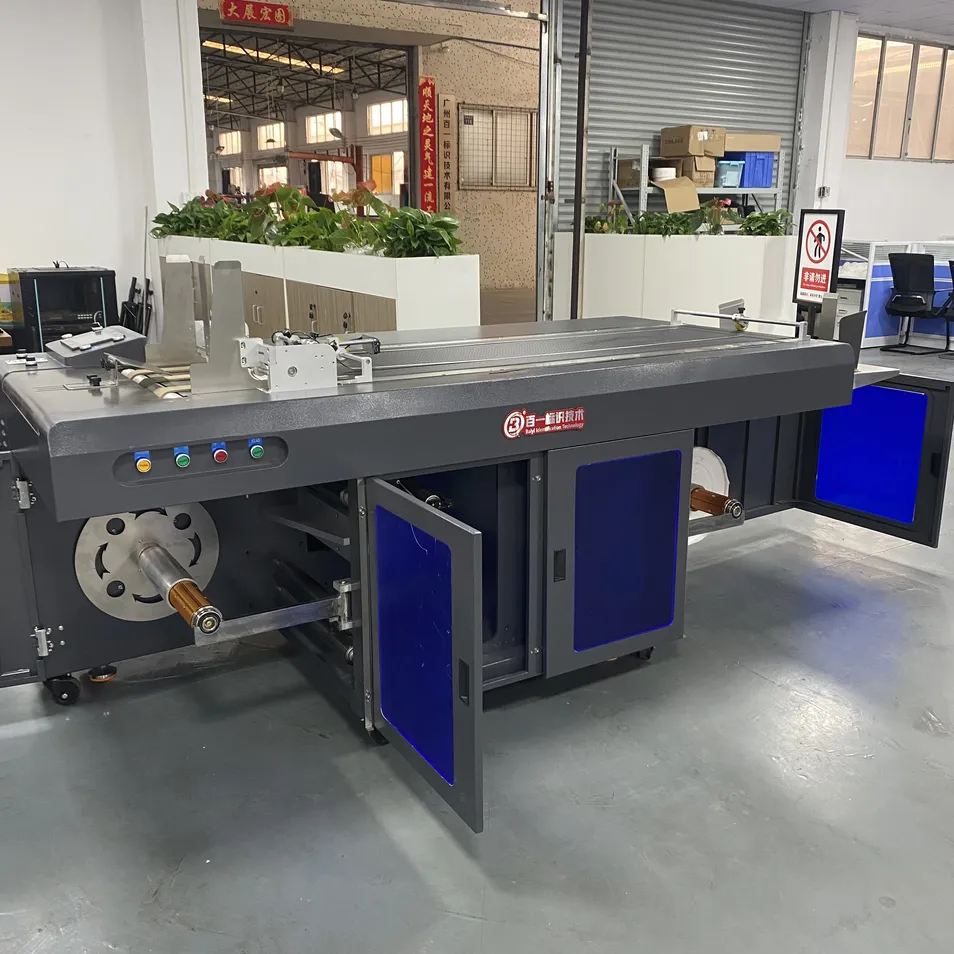

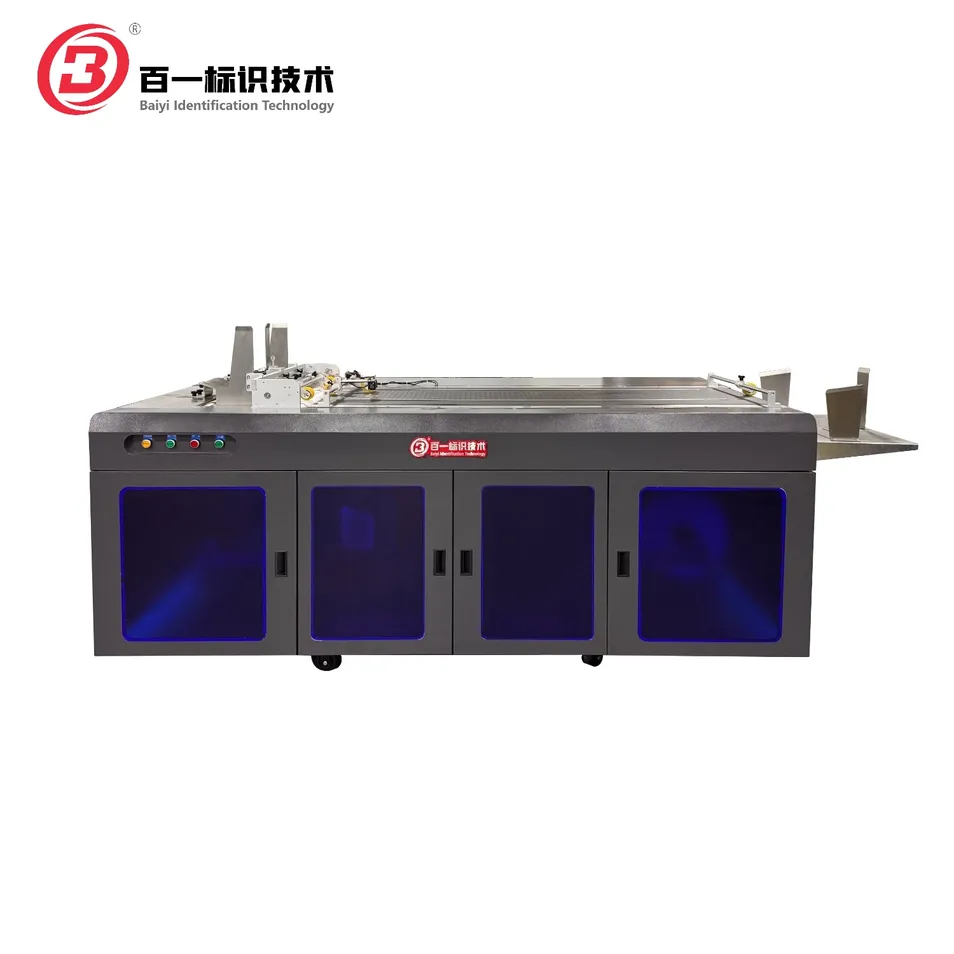

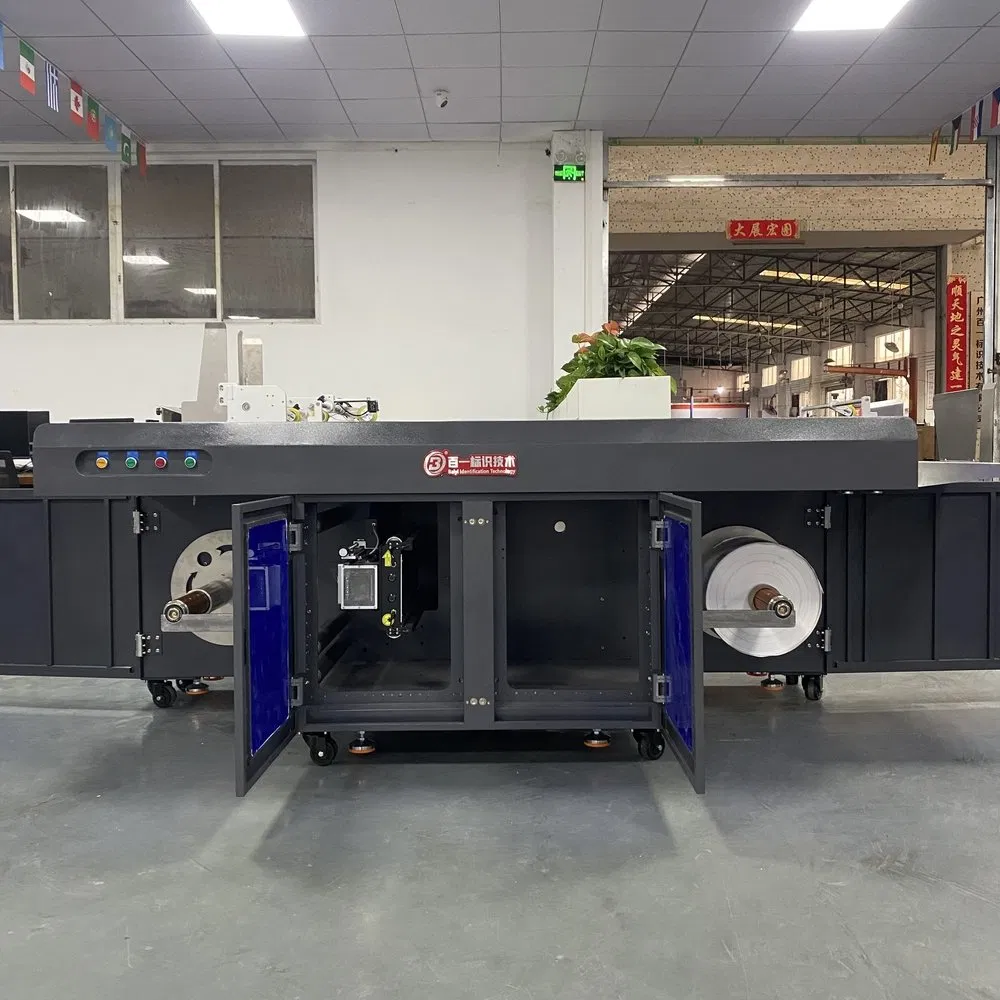

Detailed Photos

PROGRAMMABLE PARAMETER SETTINGS

Customizable working parameters adaptable to different films and labels structures, with real-time monitoring and automatic alarm notifications for operational issues.

MULTI-FUNCTION CAPABILITIES

Fast/slow adjustable lifting speeds, automatic shutdown prevention, white mark or colorful mark trigger sensing, and accurate counting functions for complete production control.

ENHANCED SPEED & PERFORMANCE

Built upon standard rewinding machine foundation with upgraded speed capabilities and more powerful functionality for high-volume production environments.

REAL-TIME STATUS MONITORING

Comprehensive HMI system displays working status, production data, and diagnostic information with intelligent alarm system for proactive maintenance.

System Configuration

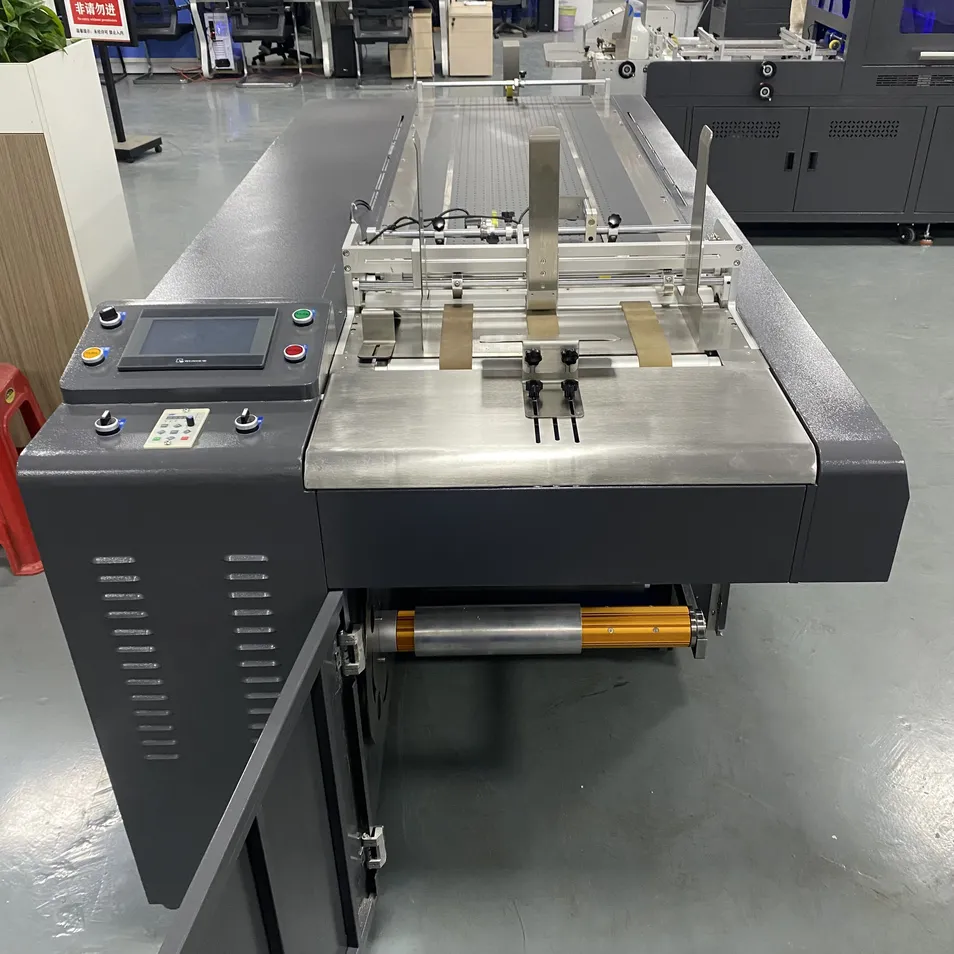

1. Feeding system configuration:

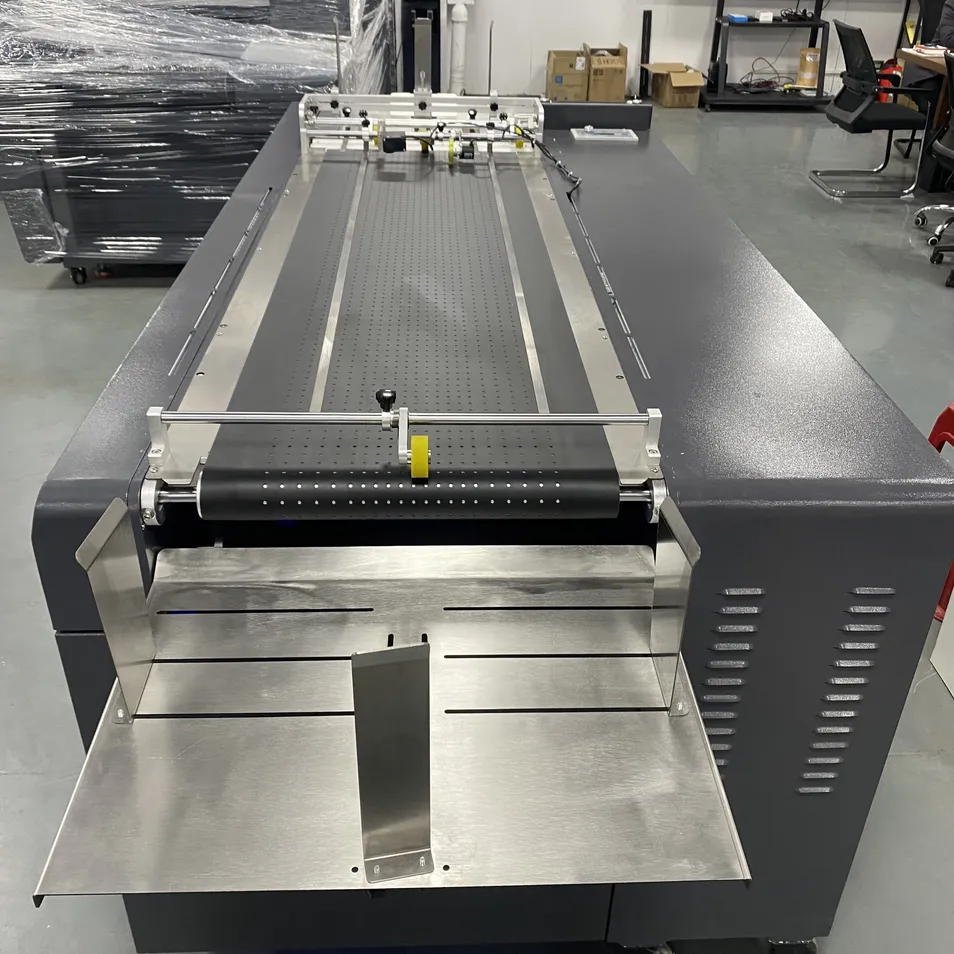

Feeding method: adopts multi-friction belt, down-out feeding;
Friction belt adjustment: independent electric adjustment;
Vacuum method: adopts large flow vacuum pump;
Collection with collection tray;
Conveyor size: 2000*500MM;

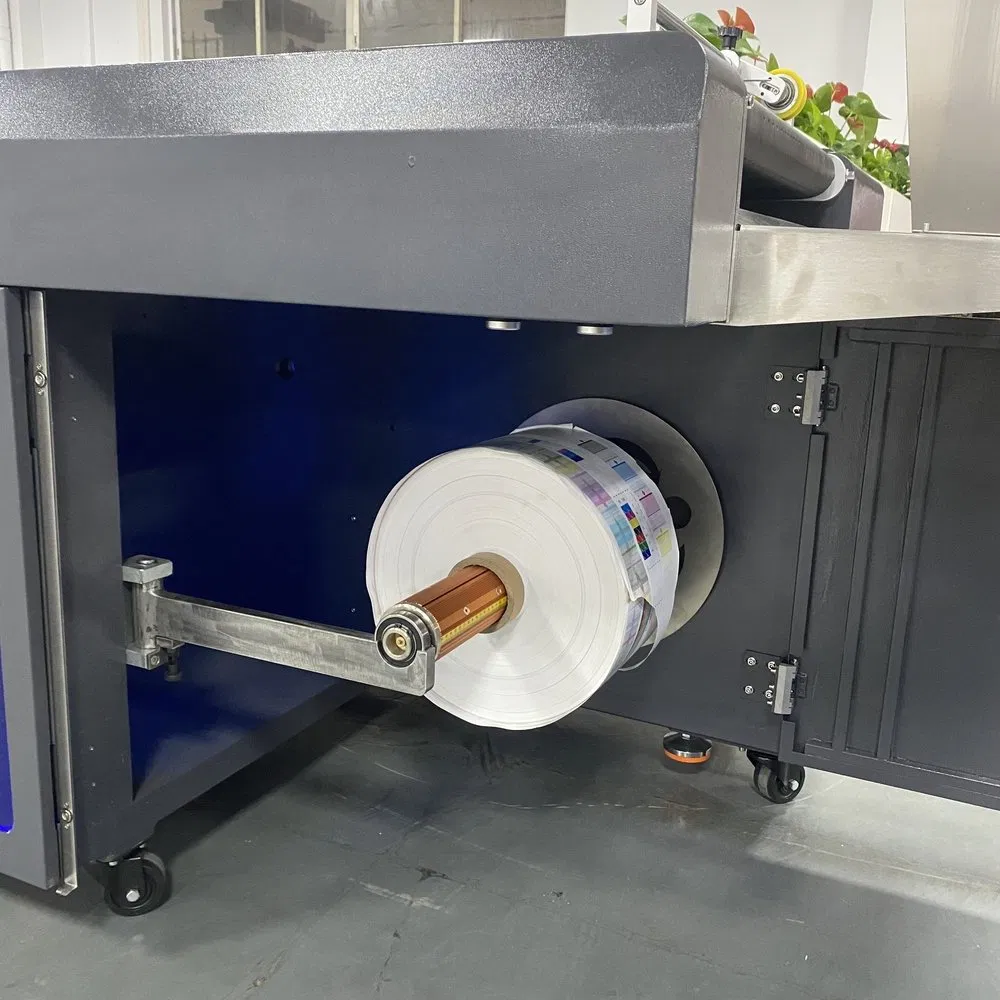

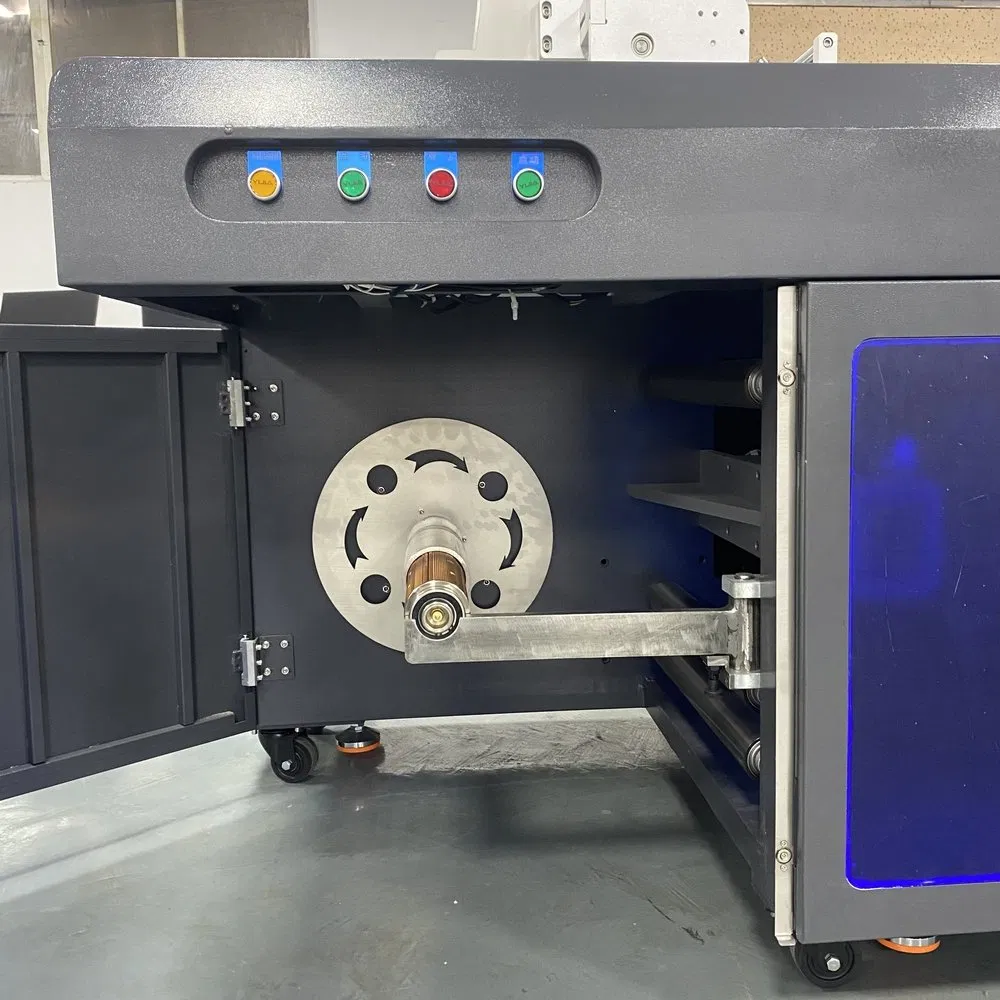

2. Rewinder configuration:

Unwinding and rewinding axis: inflation axis;
Unwinding power: servo driver;
Rewinding power: servo driver;
Traction power: servo driver;
Tension controlling: liner tension;
Inner core diameter: 76mm;
Max diameter for the roll material: 600mm;
Available width of the roll material: 30-600mm;
Compatible with various UV inkjet printing systems, laser, TIJ, and CIJ printers.
