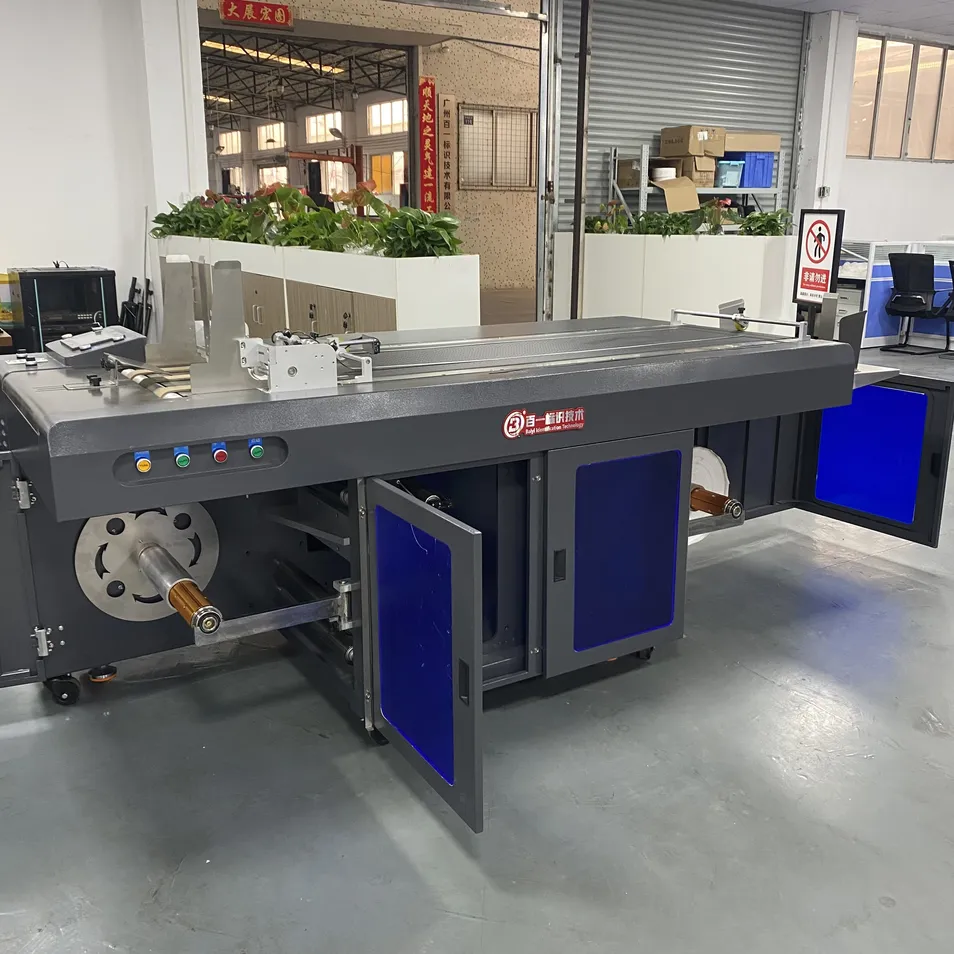

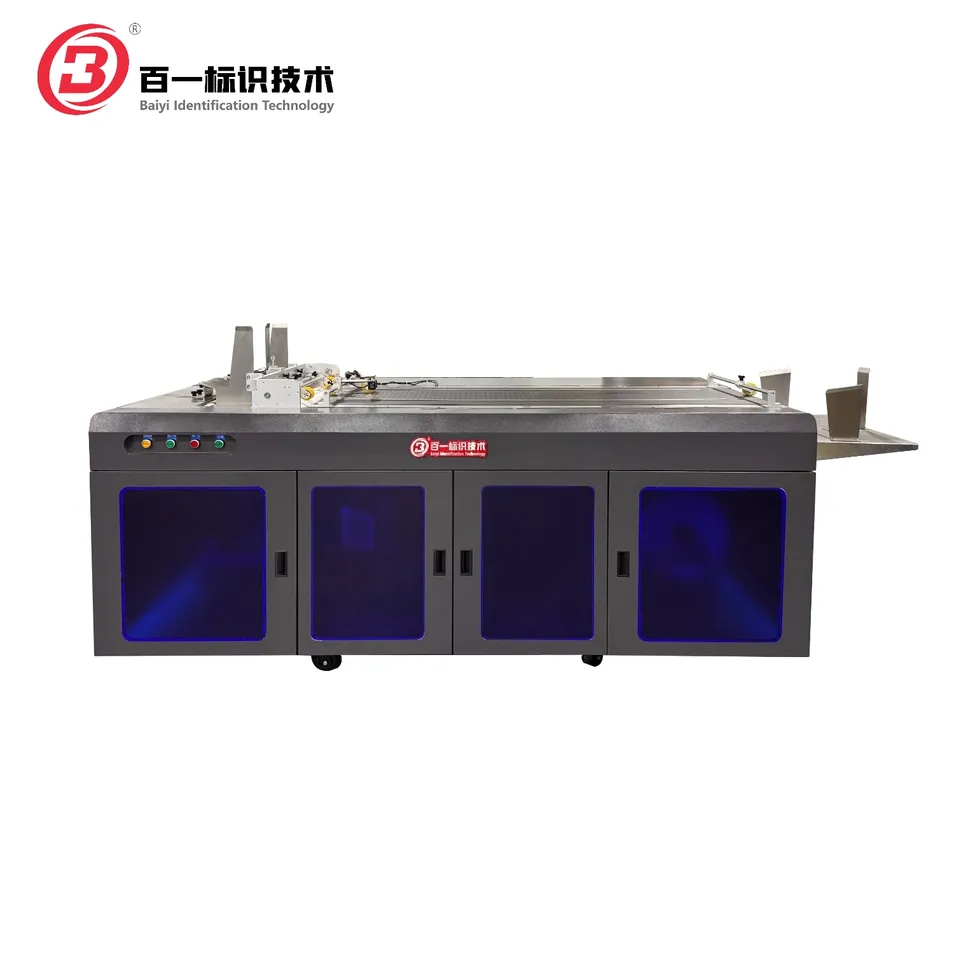

This advanced intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.
Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.
The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.

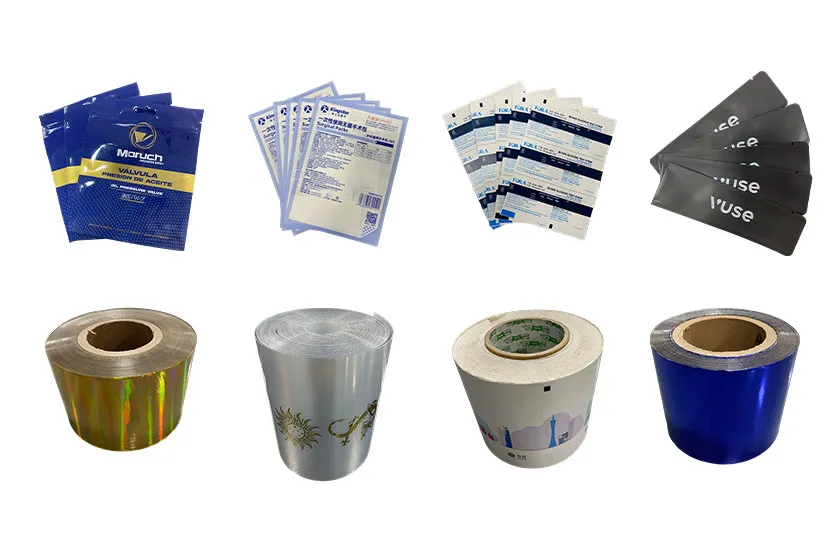

Roll film feeding, printing, and rewinding for food packaging, pharmaceutical packaging, and consumer goods wrapping materials.
Production of adhesive labels, product tags, barcode labels, and identification stickers with integrated printing and finishing.
Handling plastic films, BOPP films, PET films, aluminum foil, and specialty materials requiring unwinding and rewinding operations.
Batch coding, expiration dates, serial numbers, and personalized information on roll materials using integrated printing systems.
Compliance coding and marking on packaging materials with precise tension control for delicate substrates.
Roll-to-roll processing for technical textiles, protective films, release liners, and specialty converting applications.
| Technical Parameters Specification | |||
|---|---|---|---|
| Voltage | 220Vac, 50Hz | Releasing Tension Control | Linear Tension Control |
| Efficiency | About 500 Pcs/Min (based on 100mm product reference, relative to printing speed and frequency) | ||
| Weight | About 500Kg | Collection Tension Control | Linear Tension Control |
| Conveyor Speed | 5-150M/Min (Adjustable Continuously) | Power | About 4.5Kw |
| Dimension | L*W*H = 2600 * 1000 * 1200 mm | Available Product | BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film, etc. (Roll and Sheet materials) |
| Core Diameter | 3 Inch (76mm) | Available Product Size | Material Width: 30-480mm, Max Material Diameter: 500mm, Max Material Weight: 50kg |

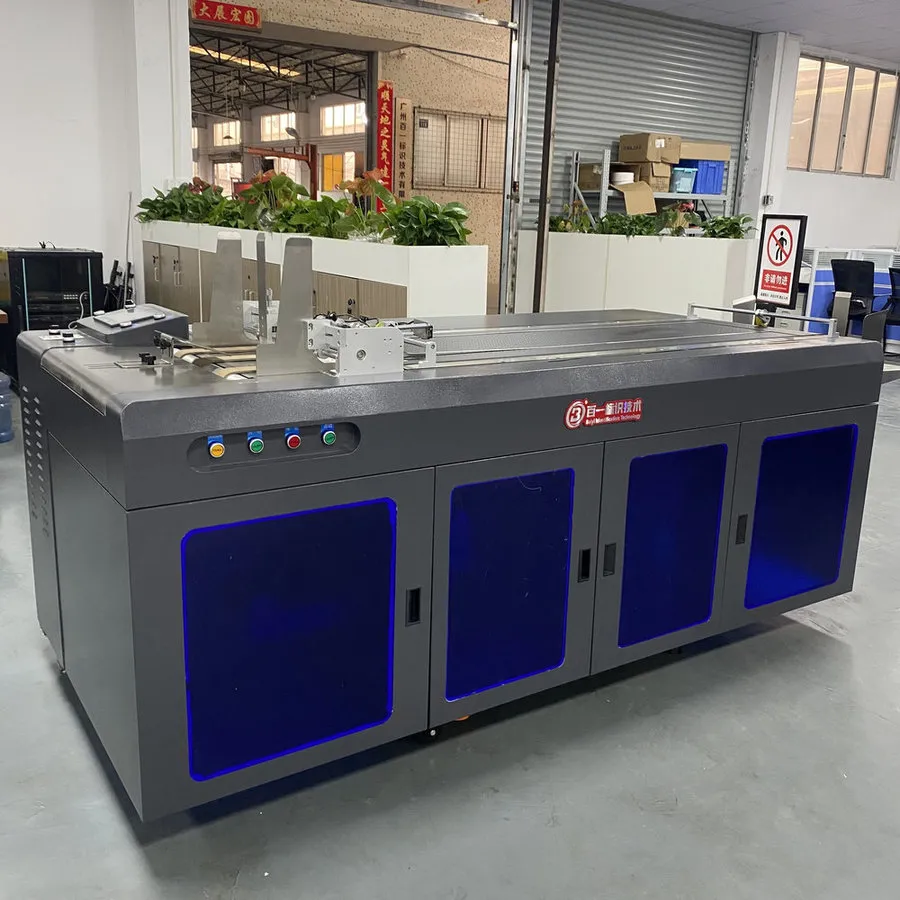

Customizable working parameters adaptable to different films and labels structures, with real-time monitoring and automatic alarm notifications for operational issues.
Fast/slow adjustable lifting speeds, automatic shutdown prevention, white mark or colorful mark trigger sensing, and accurate counting functions for complete production control.
Built upon standard rewinding machine foundation with upgraded speed capabilities and more powerful functionality for high-volume production environments.

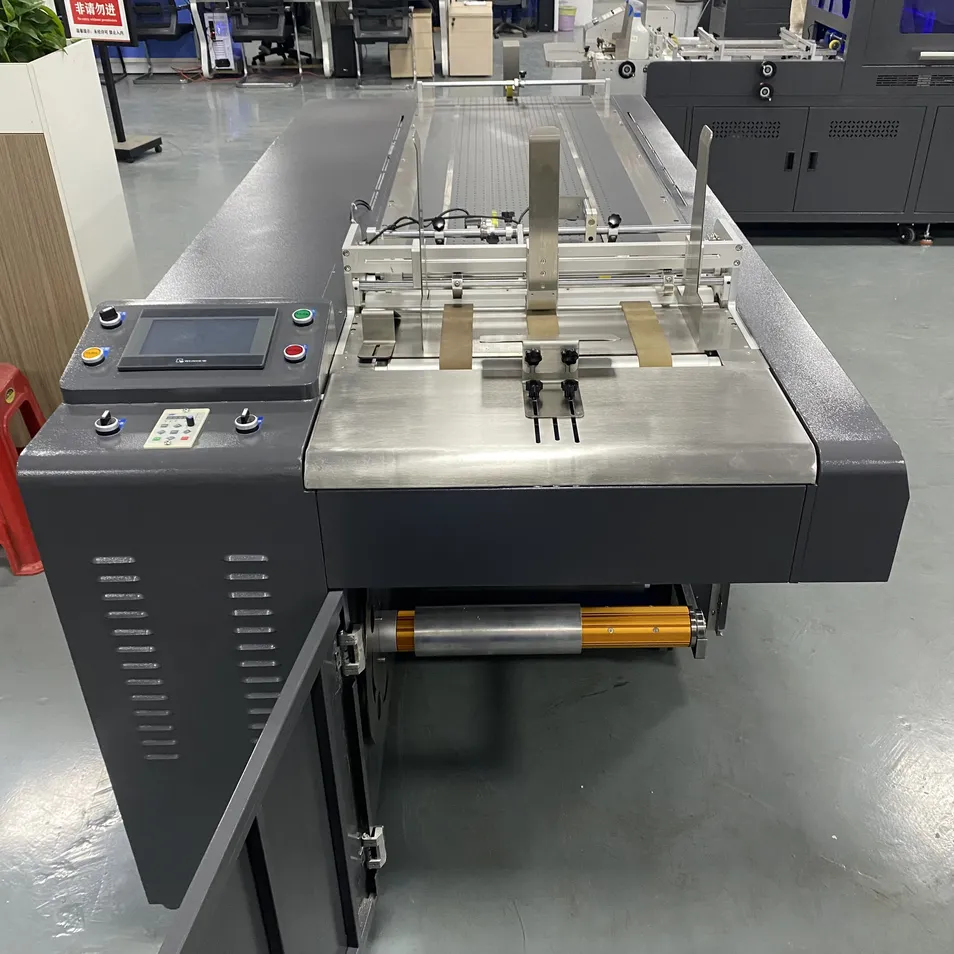

Comprehensive HMI system displays working status, production data, and diagnostic information with intelligent alarm system for proactive maintenance.
