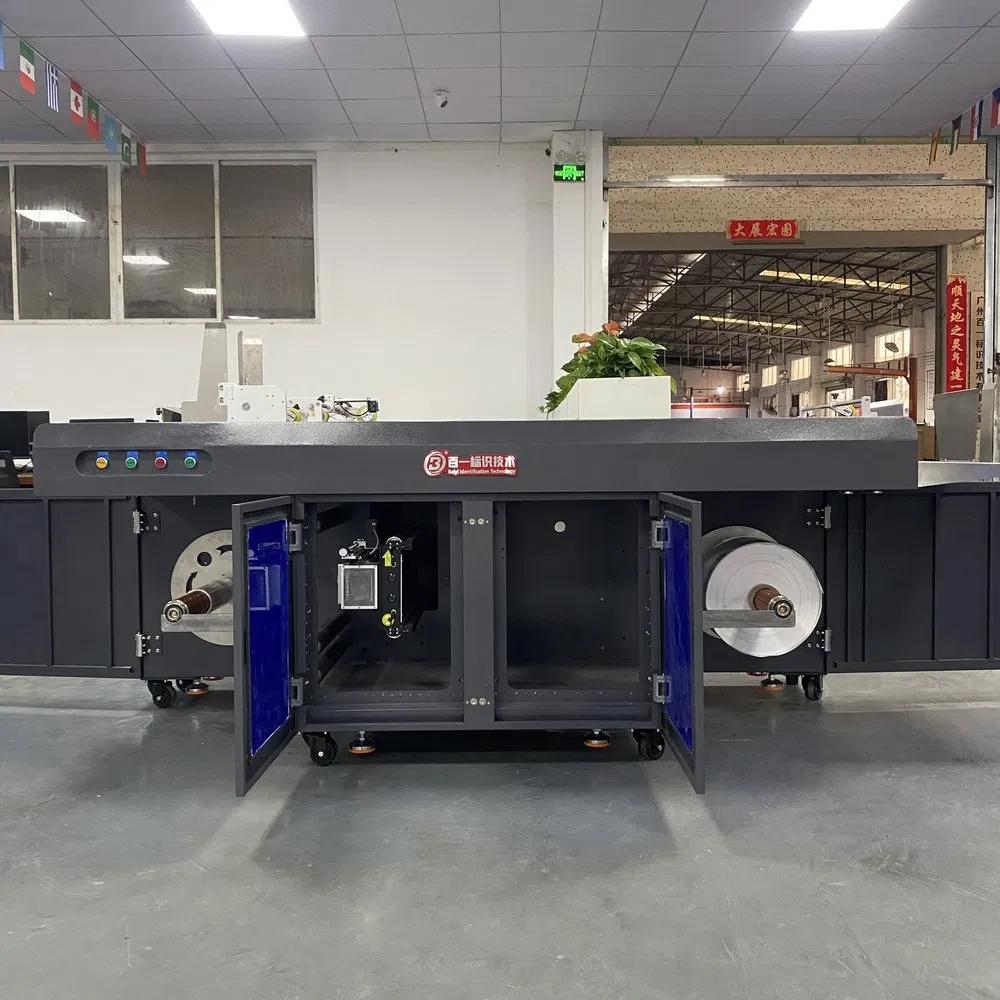

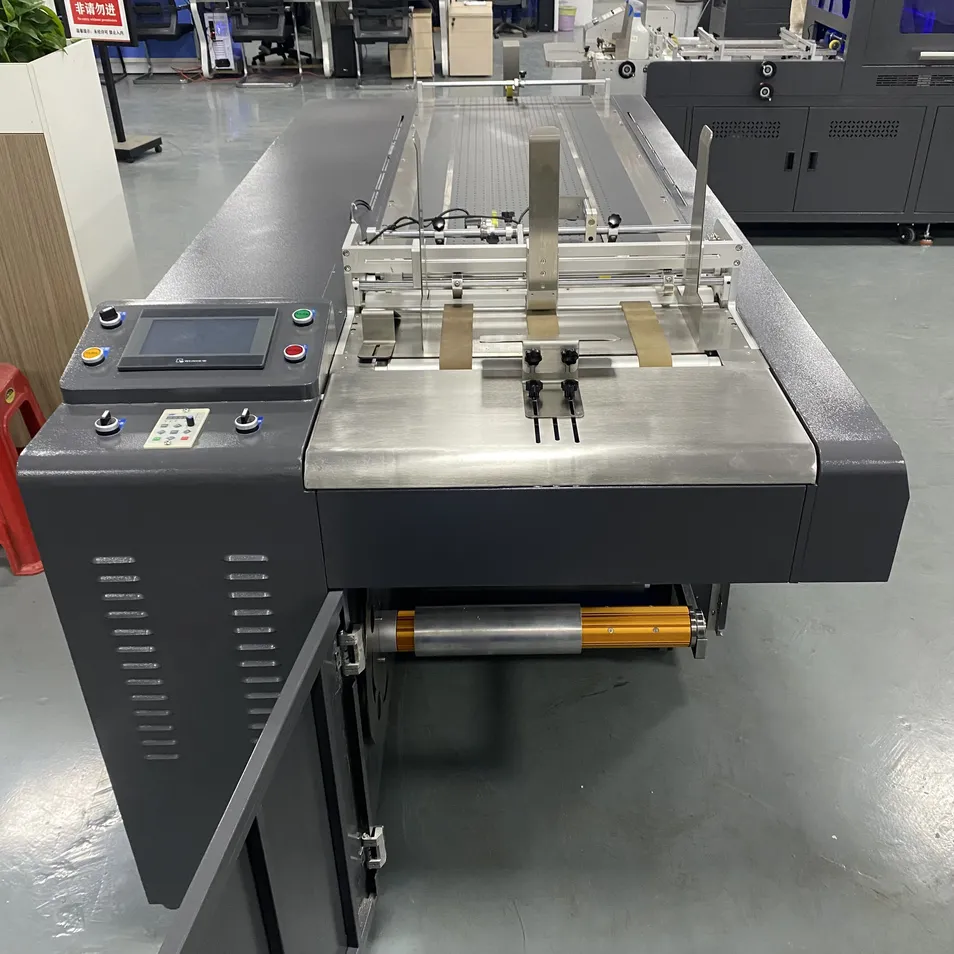

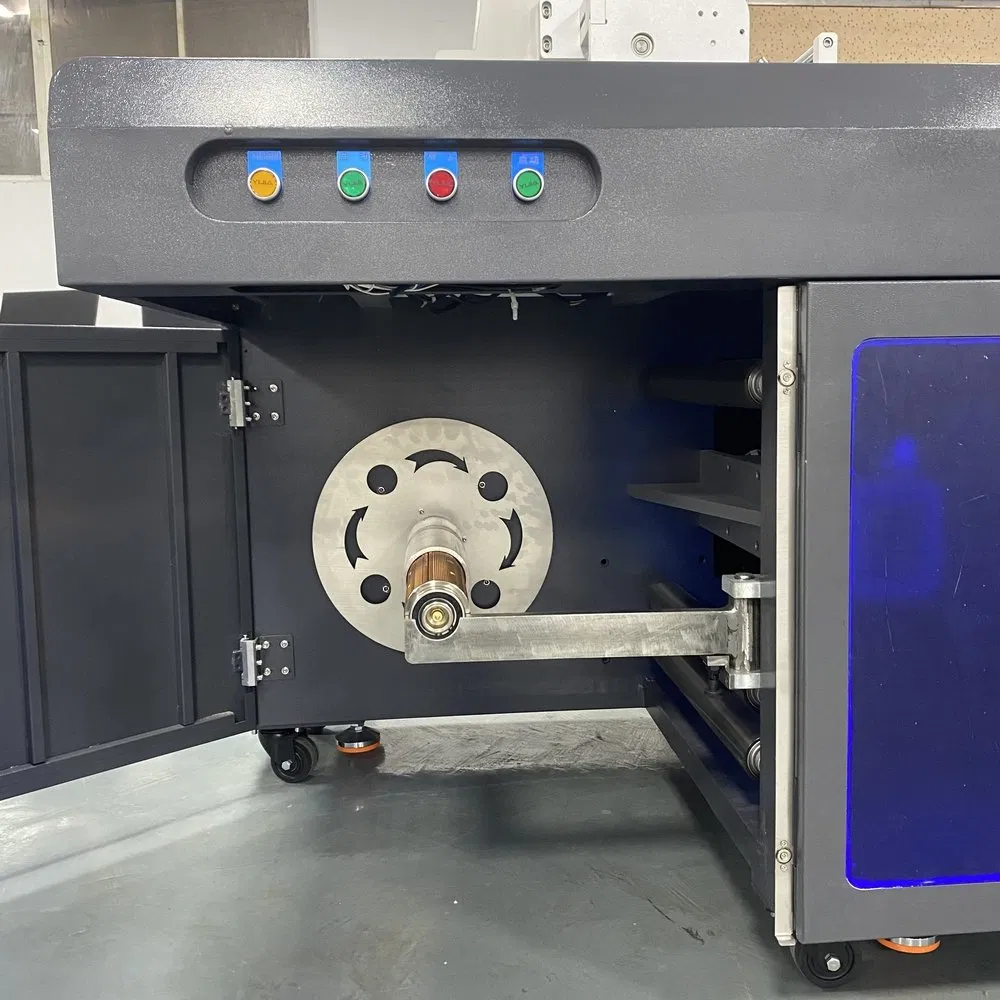

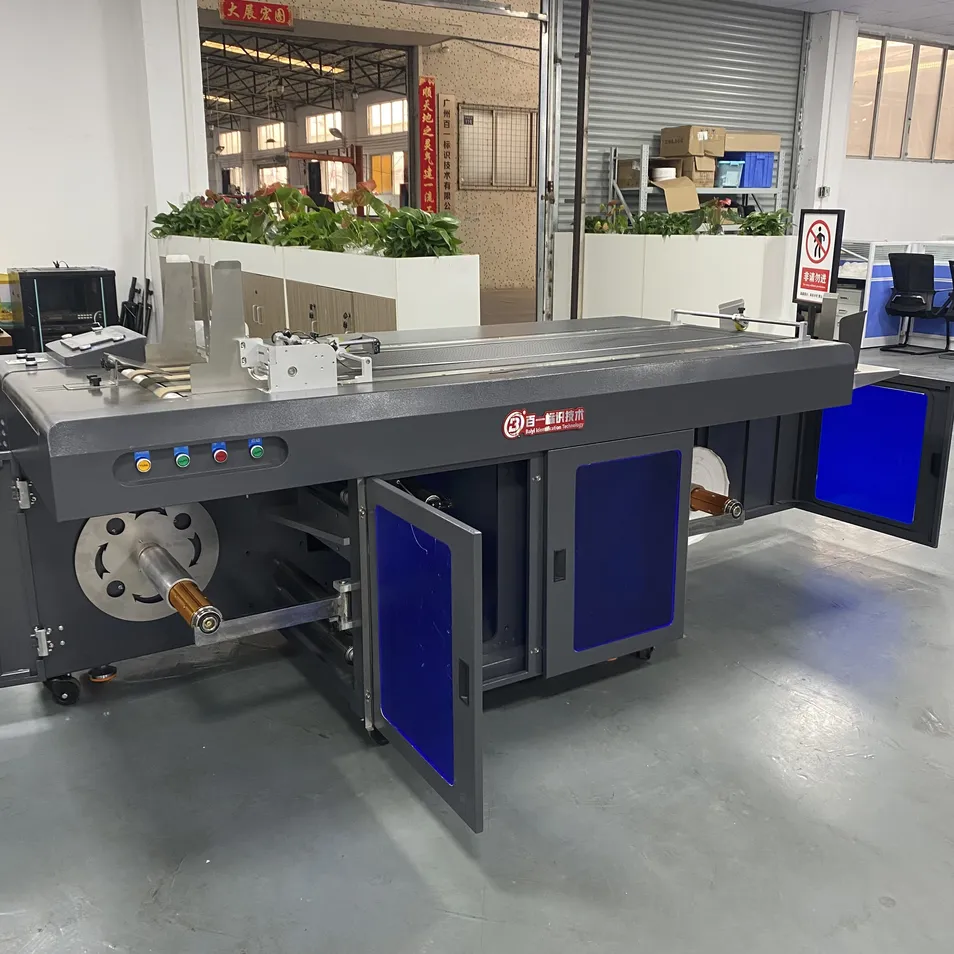

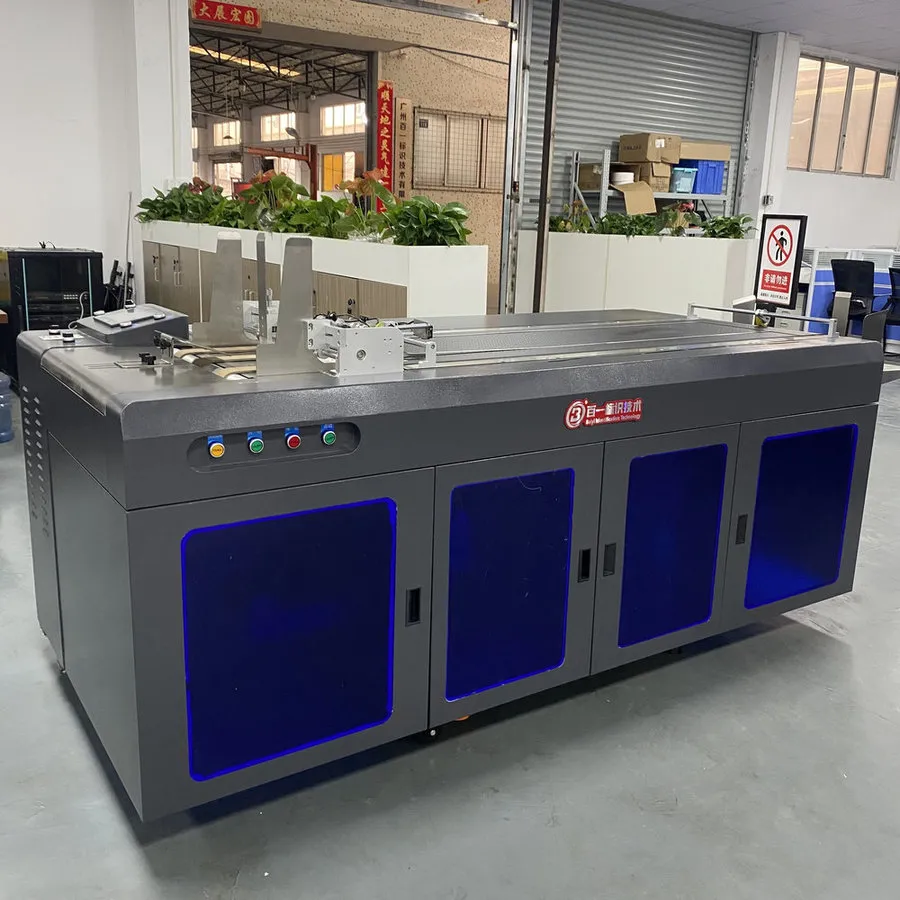

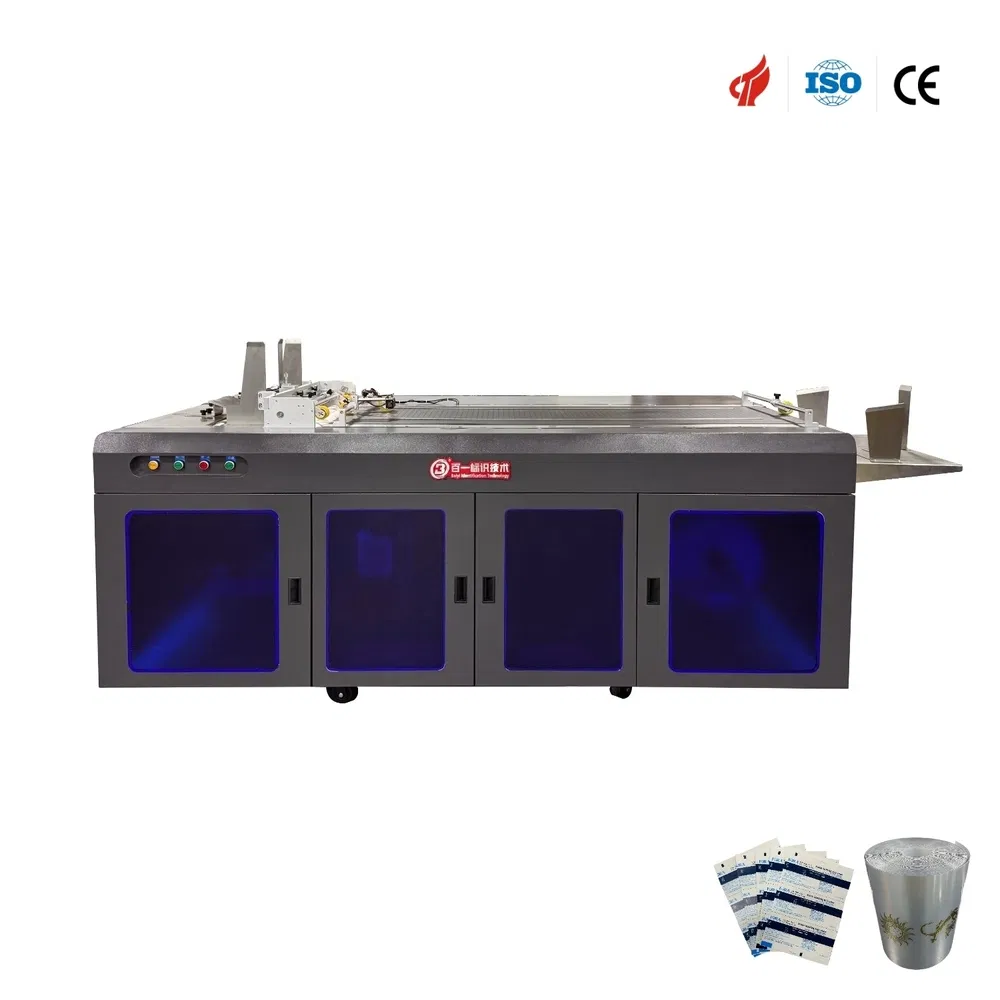

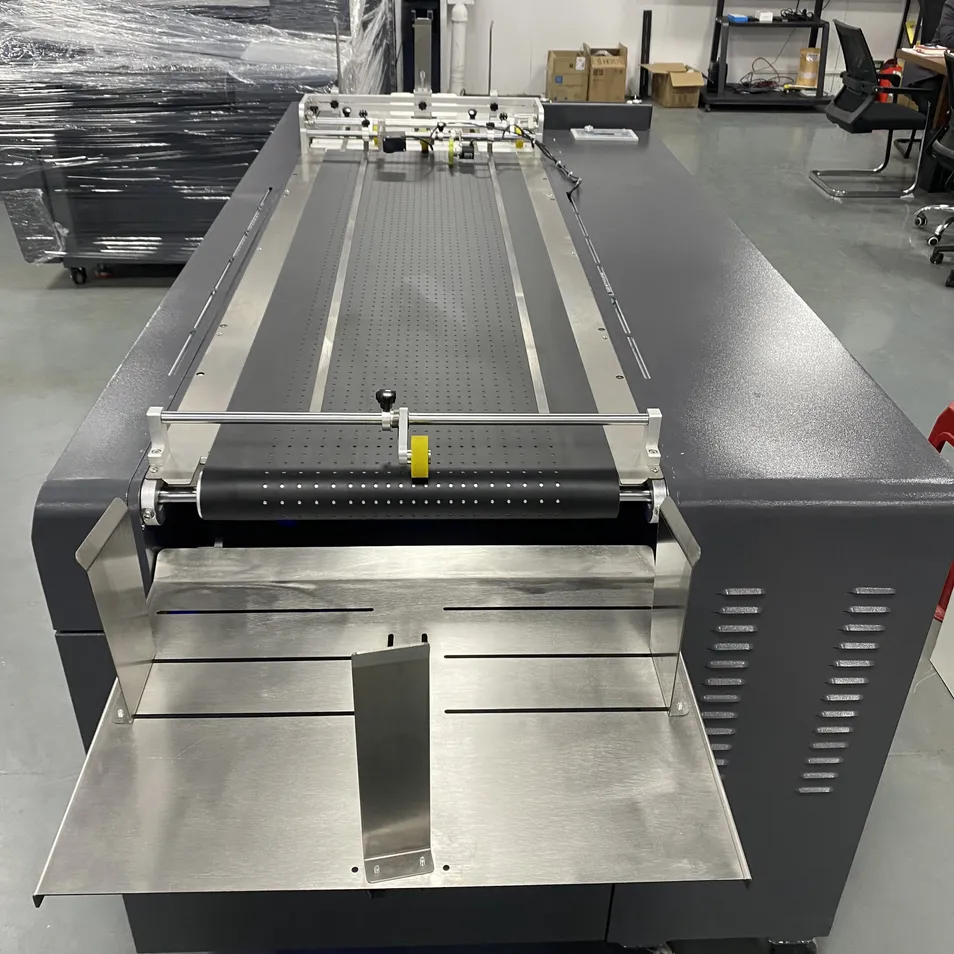

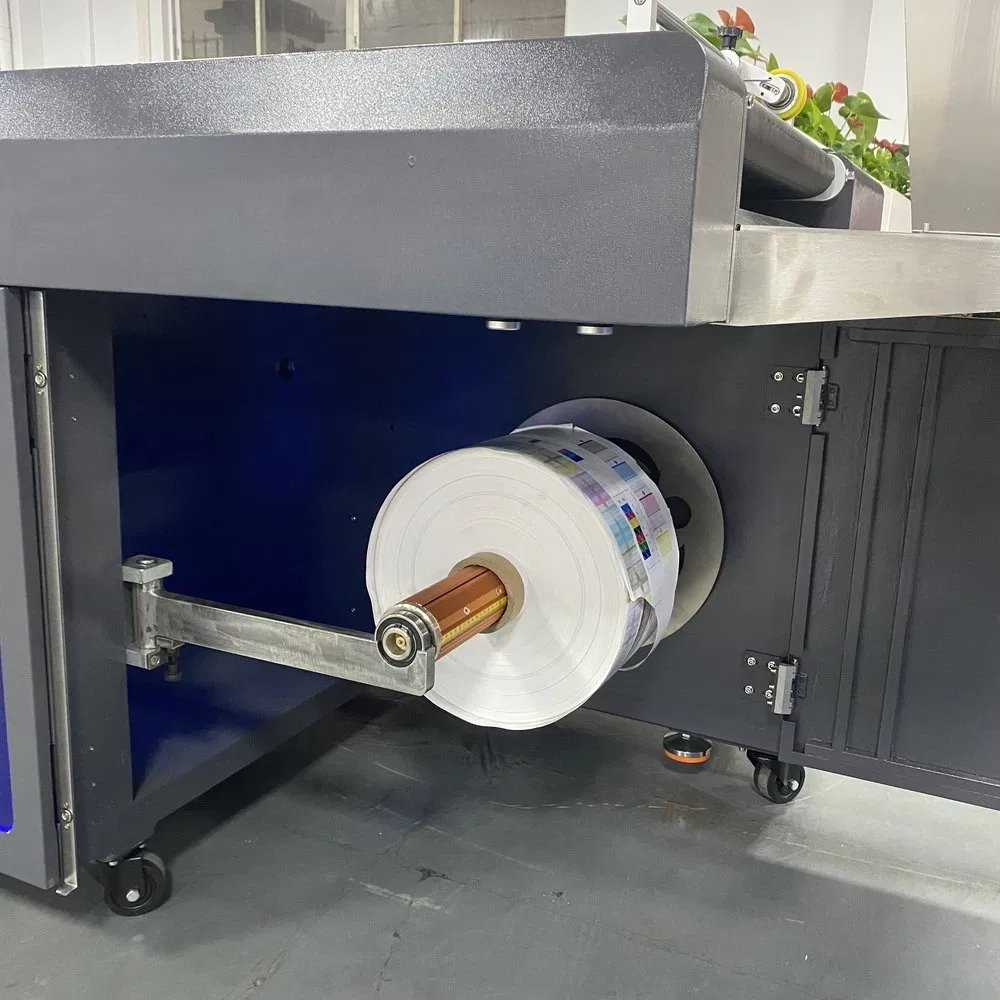

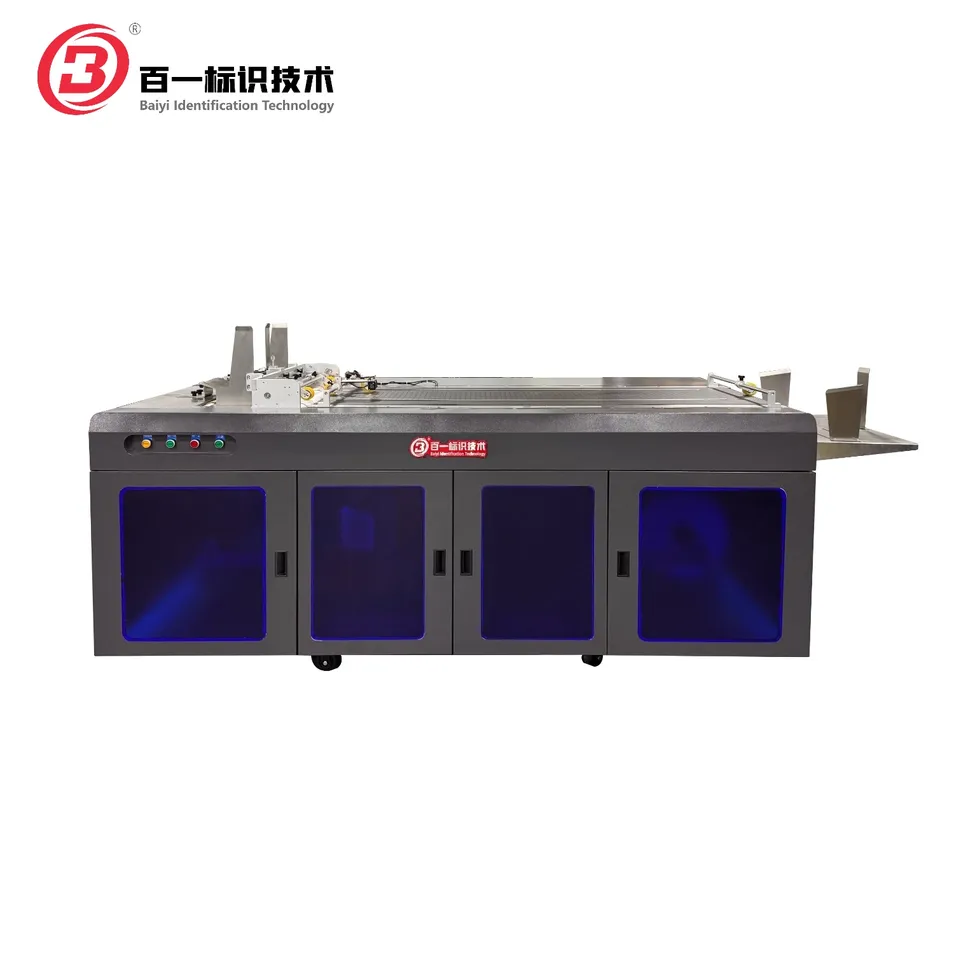

This advanced intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.
Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.
The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.
| Technical Specifications | |||
|---|---|---|---|
| Voltage | 220Vac, 50Hz | Releasing Tension Control | Linear Tension Control |
| Efficiency | About 500 Pcs/Min (Based on 100mm product. Output is also related to printing speed and frequency.) | ||
| Weight | About 500Kg | Collection Tension Control | Linear Tension Control |
| Conveyor Speed | 5-150 M/Min (Adjustable continuously) | Power | About 4.5Kw |

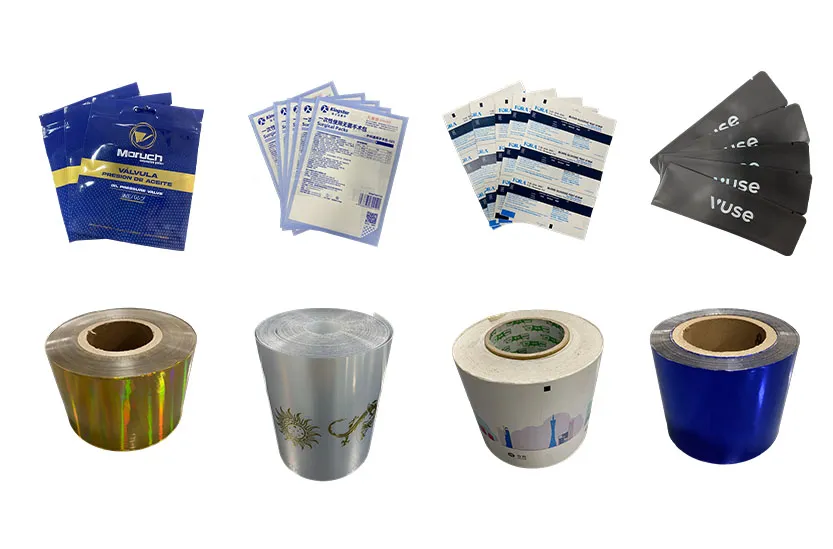

| Dimension | L*W*H = 2600*1000*1200 mm | Available Product | BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film, etc. Material in roll as well as sheet material. |
| Core Diameter | 3 Inch (76mm) | Available Product Size | Material Width: 30-480mm, Max Material Diameter: 500mm; Max Weight: 50Kg |
Customizable working parameters adaptable to different films and labels structures, with real-time monitoring and automatic alarm notifications.
Fast/slow adjustable lifting speeds, automatic shutdown prevention, white or colorful mark trigger sensing, and accurate counting.
Built upon standard rewinding machine foundation with upgraded speed capabilities and more powerful functionality for high-volume production.
Comprehensive HMI system displays working status, production data, and diagnostic information with intelligent alarm system.
Price is related to the machine configuration based on your specific production requirements.
Yes, we require all international orders to have an ongoing minimum order quantity. The MOQ for this equipment is 1 set.
It depends on the requirements, and we can process the documentation applications accordingly.
The average lead time depends on your specific system selection and ranges from 2 working days to 30 working days.
At present, we accept TT: 50% payment after order confirmation, with the remaining balance to be settled before shipment.
Generally, we offer a one-year warranty after delivery. Please note that wearable parts are not included in the standard warranty coverage.
