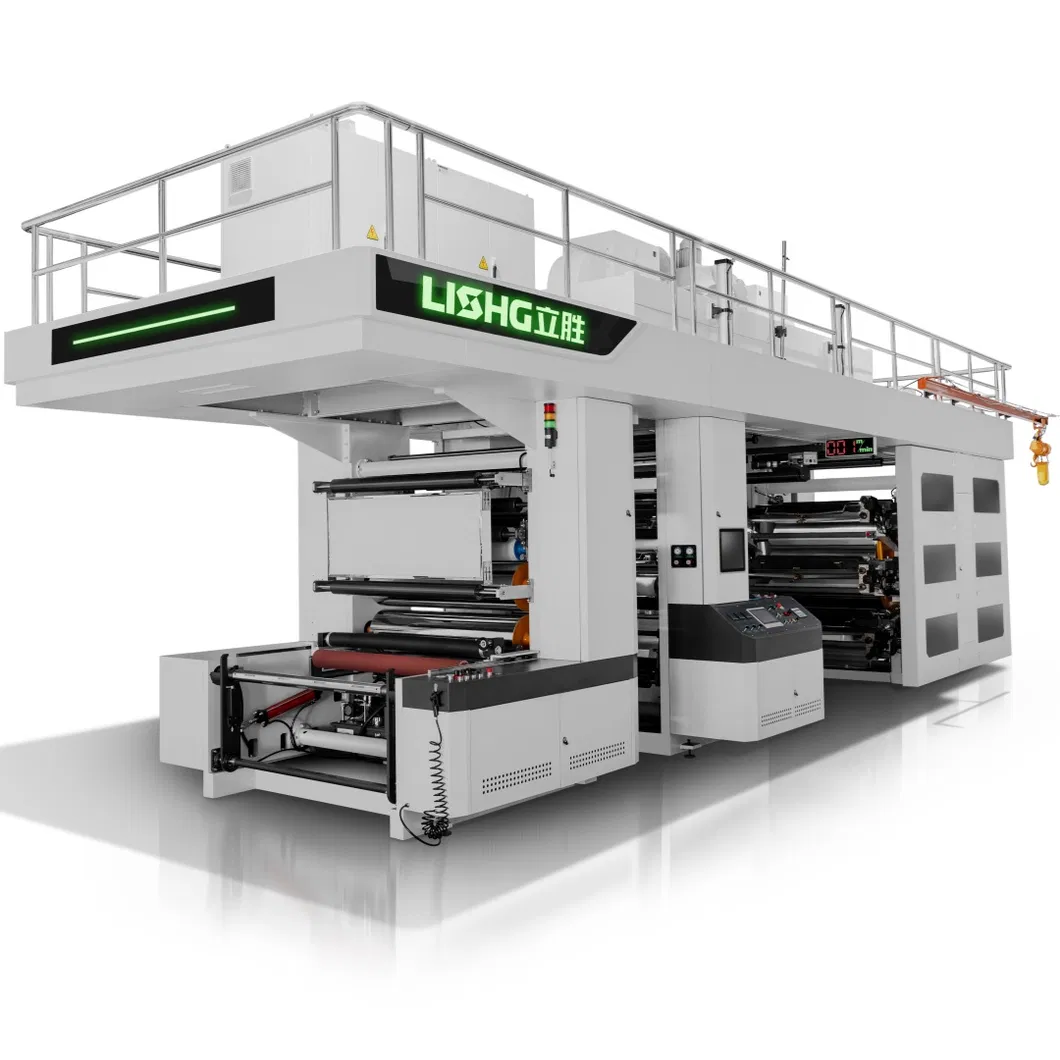

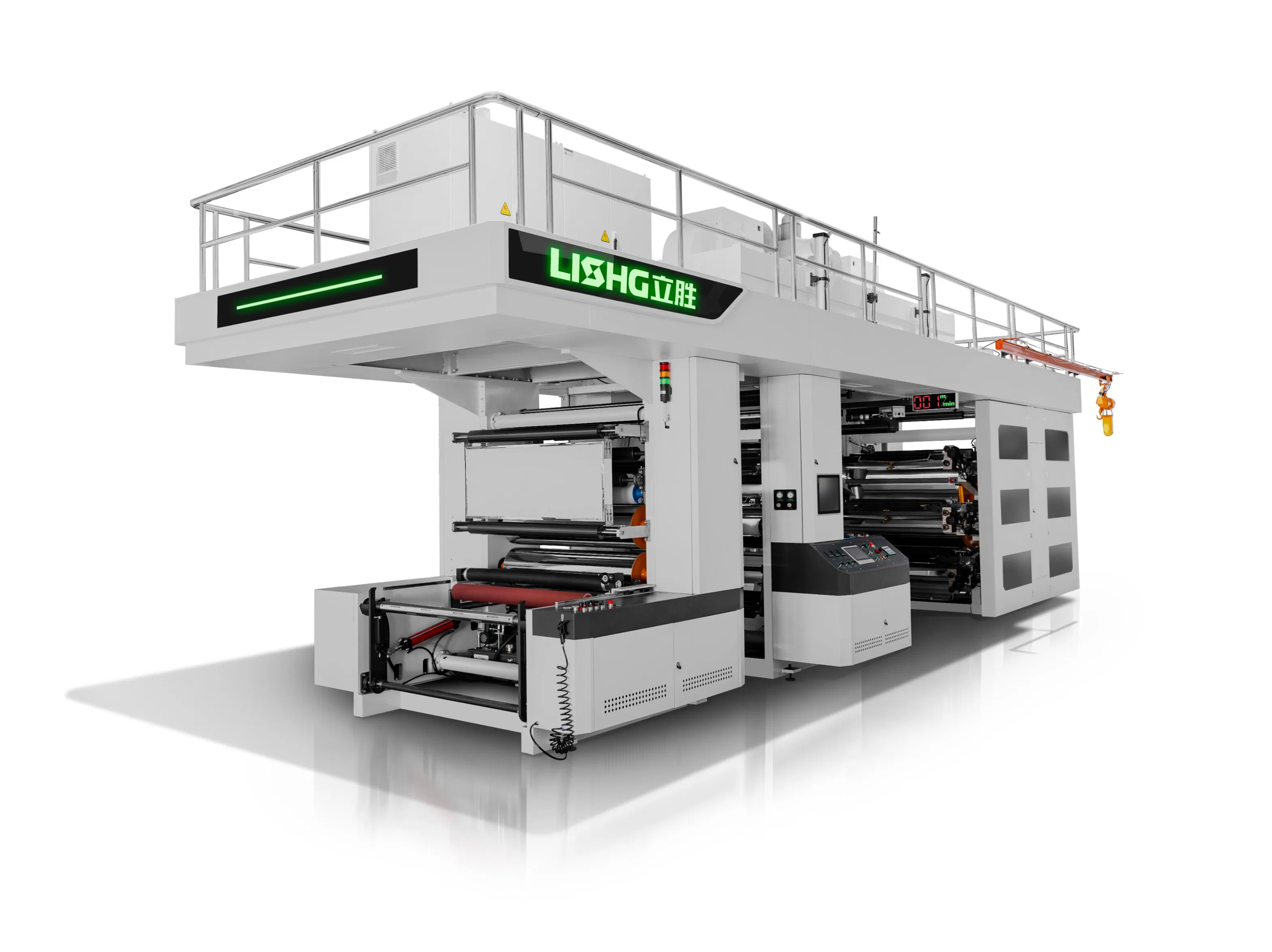

This central impression (central drum) flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag, leather, glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.
| Printing width Item | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm |
| Printing color | 6(PC:6+0,4+2,5+1,3+3) | |||||||
| Printing length | 7.5"-40"/7.5"-50 | |||||||
| Thickness of plate | 1.14mm, 1.7mm, 2.28mm, 2.84mm, 3.94mm (Customized is available) | |||||||
| Heating method | Electricity heating | |||||||
| Max.oven temp | Max. 80ºC (room temp. 20ºC) | |||||||

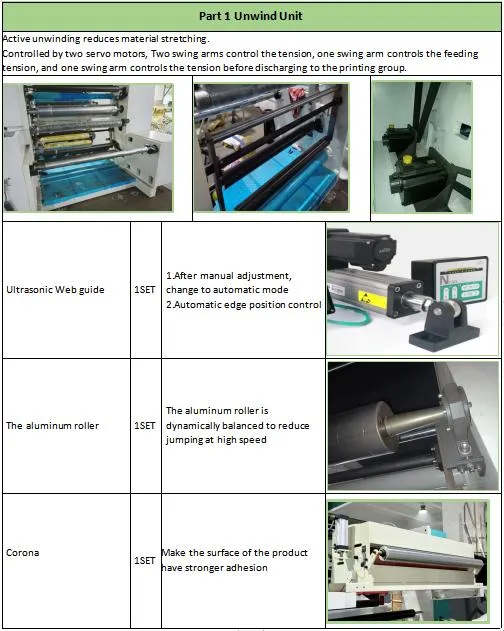

| Web fixing method for un/rewinder | Safety chuck + Air expanding shaft | |||||||
| Printing plate lifting system | Hydraulic press control | |||||||
| Mechanical speed | 150m/min | |||||||
| Printing speed | 80m-120/min | |||||||
| Anilox cylinder | Ceramic anilox roller | |||||||
| Register precision | Longitude: ±0.10mm, Transverse: ±0.10mm | |||||||
| Rewinder/Unwinder DIA | φ600mm ~ φ1000mm | |||||||

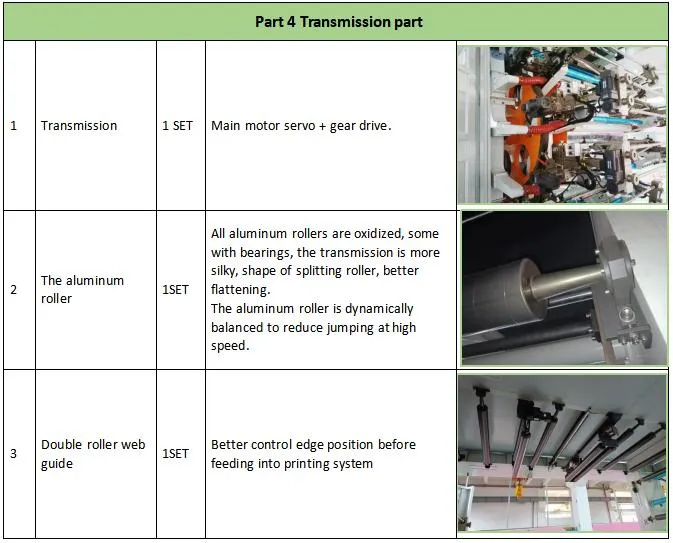

| Master motor | 3.7kw | 3.7kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 11kw |
| Unwinder motor | 1.1kw | 1.5kw | 2.2kw | 3.0kw | ||||

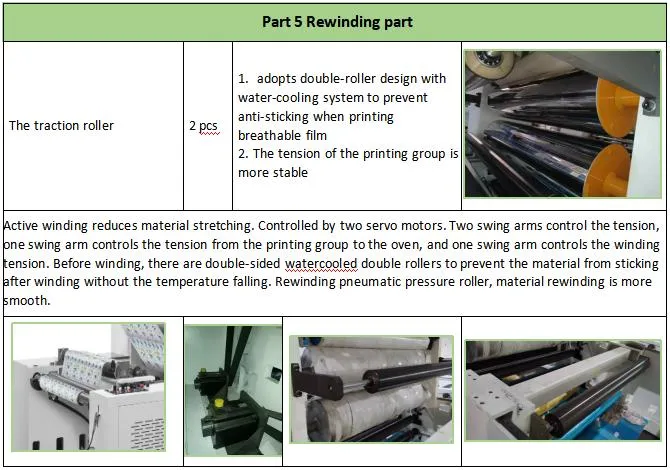

| Rewinder motor | 1.5kw | 2.2kw | 3.0kw | 3.7kw | ||||
| Electrical heater | 14kw | 16kw | 20kw | 22kw | 24kw | 26kw | 28kw | 30kw |
| Blower of heater | 1.5kw*2 | 1.1kw*3 | 1.1kw*3 | 1.1kw*3 | 1.5kw*3 | 1.5kw*3 | 2.2kw*3 | 2.2kw*3 |
| Blower of nature wind | 0.75kw | 0.75kw | 1.1kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 1.5kw |
| Inking motor | 370w | 750w | 750w | 750w | 750w | 750w | 750w | 750w |
| Master frequency converter | (Panasonic) / (Toshiba) transducer Japan | |||||||
| Bearing | Japan (NSK) | |||||||
| Unilateral bearing | ASNU (Germany) | |||||||
| Weight | 4500kg | 4750kg | 5000kg | 5250kg | 5500kg | 5750kg | 6000kg | 6300kg |
| Master Power | 25kw | 27kw | 34kw | 37kw | 43kw | 47kw | 55kw | 58kw |
| Dimension (L*W*H) | 4.8m * 1.8m * 2.8m | 4.8m * 2.0m * 2.8m | 4.8m * 2.2m * 2.8m | 4.8m * 2.4m * 2.8m | 4.8m * 2.6m * 2.8m | 4.8m * 2.8m * 2.8m | - | - |
We are a factory, with 20 years experience on machines, our products sell very well all over the world.
Our factory is located in Ruian Zhejiang China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from Shanghai (5 hours by train). All our clients, from home or abroad, are warmly welcomed to visit us.
Our machine is multifunction, can do roll to roll printing, such as paper, plastic, woven, nonwoven and so on. Surely, you can send us your products, and we'll offer you the proper machine.
Yes, we can send you some free sample, but you are responsible for delivery charges of TNT or DHL.
We can arrange engineers to service overseas.
We are one of the leaders in this field (in China). Our high-quality products and service enabled us to expand our market from China to more than 60 countries.
